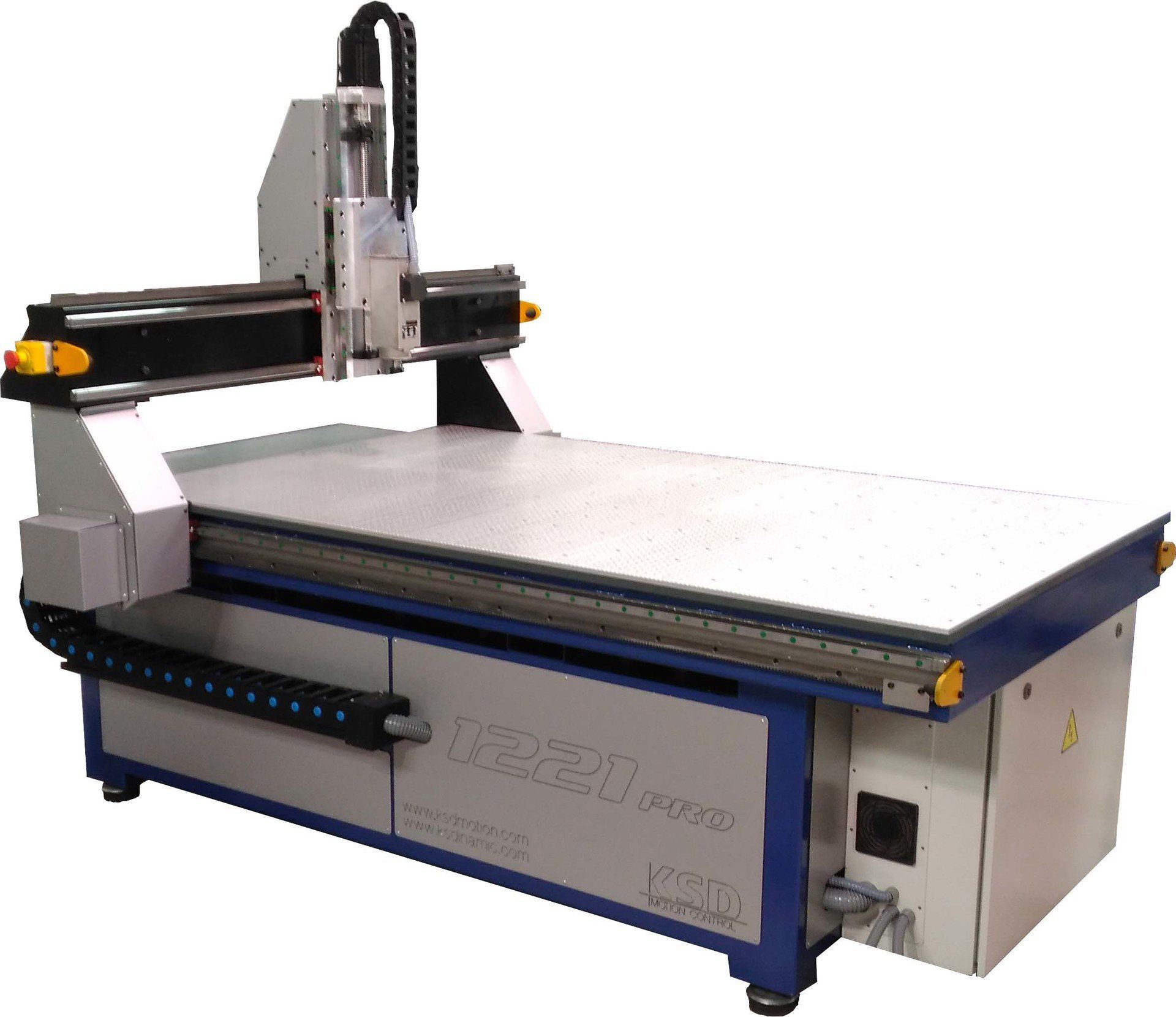

KSD 1221 PRO

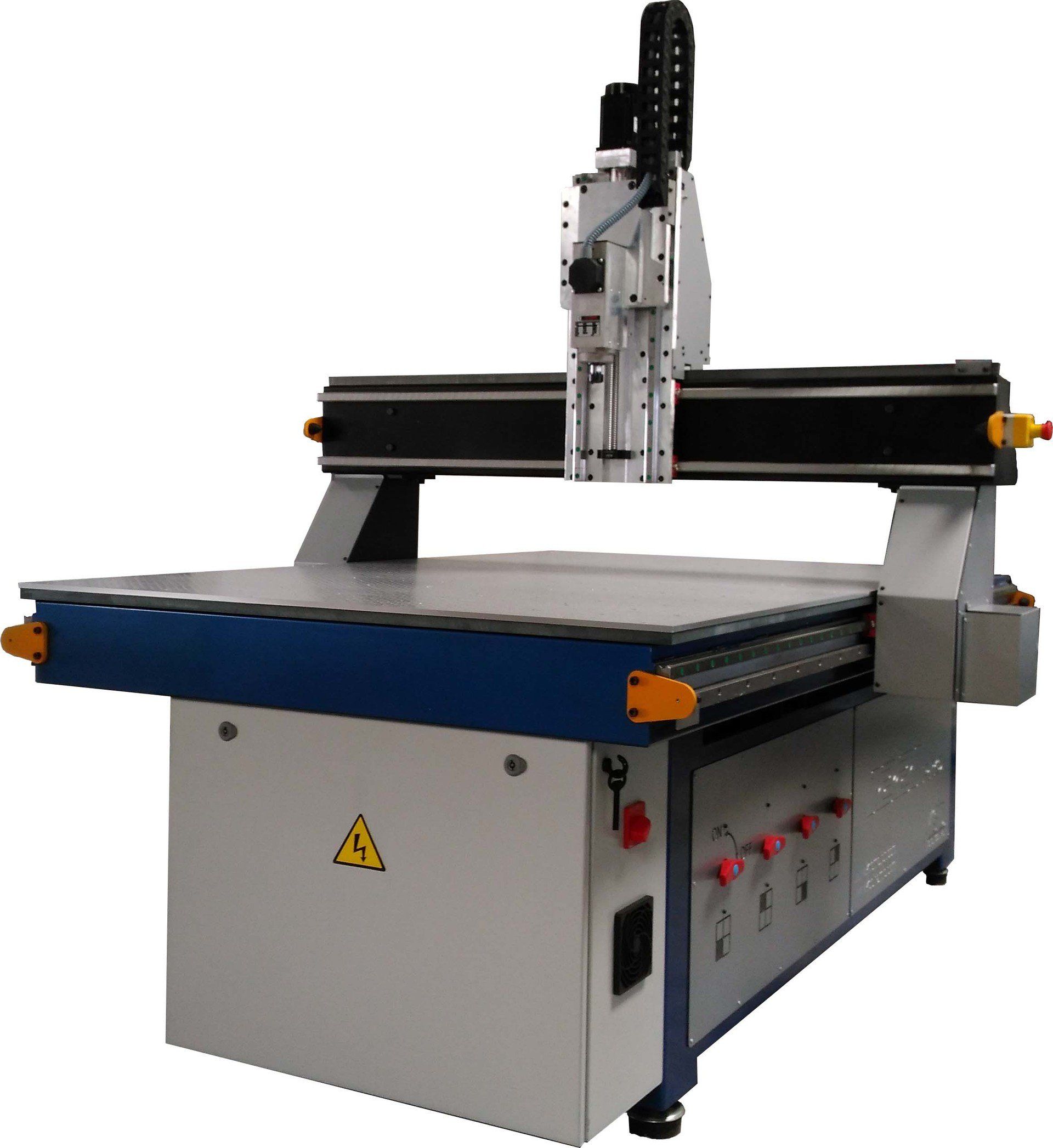

KSD 1221 PRO, is a milling machine of numerical control CNC, professional, of high performance, of three axes with bench (table of work) and mobile bridge with displacement on all the useful surface of work, where lodges themilling engine. It is equipped with a professional vacuum system on the entire work surface.
KSD 1221 PRO, is a milling machine of numerical control CNC, professional, of high performance, of three axes with bench (table of work) and mobile bridge with displacement on all the useful surface of work, where lodges themilling engine. It is equipped with a professional vacuum system on the entire work surface.
Is composed of:
• Monocoque chassis in CNC machined steel.
• Useful size: 1270x2500x200 mm.
• Vacuum table composed of: rectified 5083 aluminum plate of 10 mm with double perforated system, 20 mm PVC plate and 4 mm DM anvil.
• 5.5 Kw vacuum pump 220 VAC, single stage.
• Safety valve for excess vacuum.
• 4 independent vacuum zones.
• XYZ: Square guides of 25 mm with 12 linear bearings HGW25.
• Z: Rolled ball screw with 20 mm ball recirculation nut and BK / BF supports.

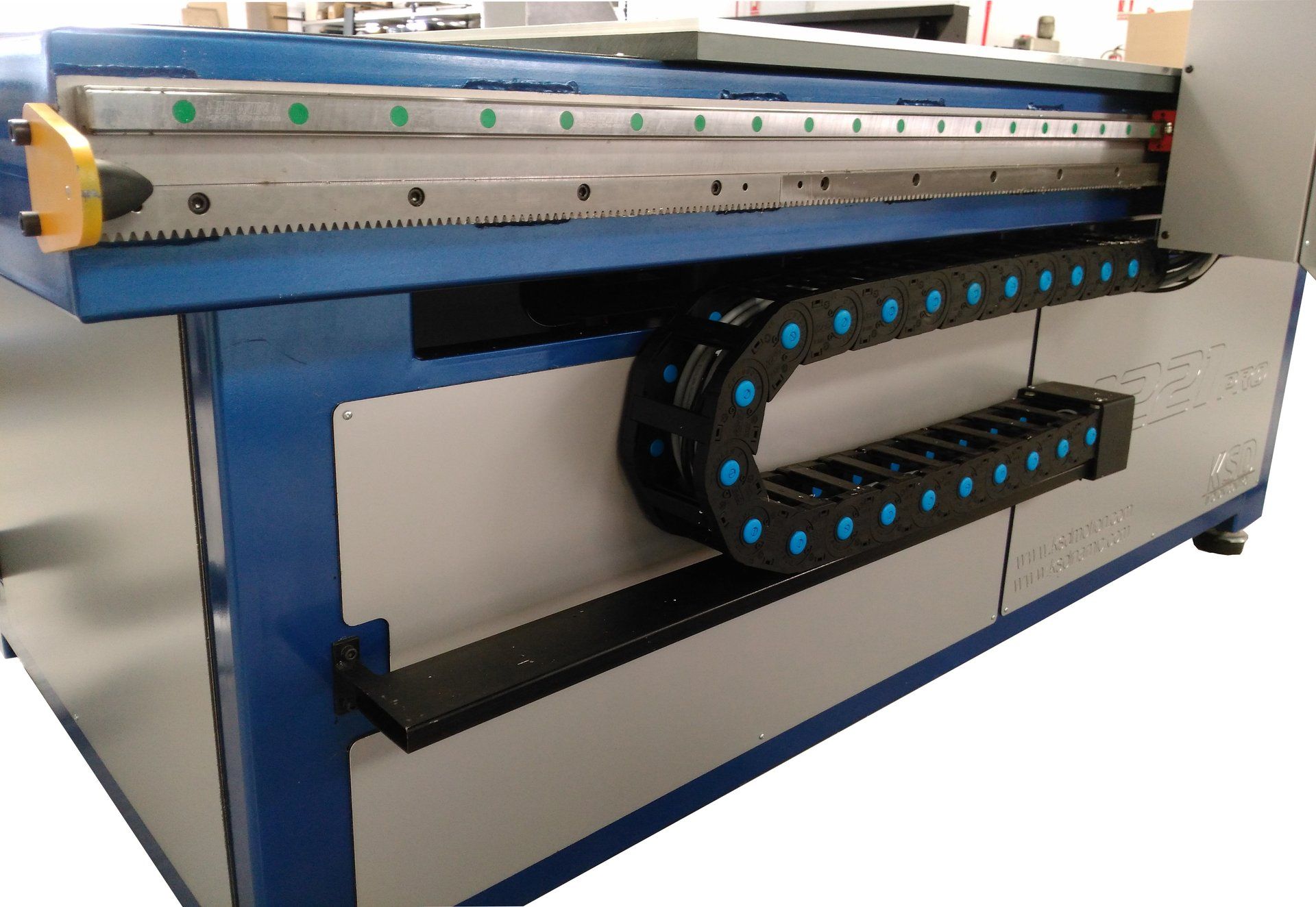

• X axis: Double engine (one in each guide) Gantry system with precision planetary gearbox, helical rack and tempered and machined pinion.

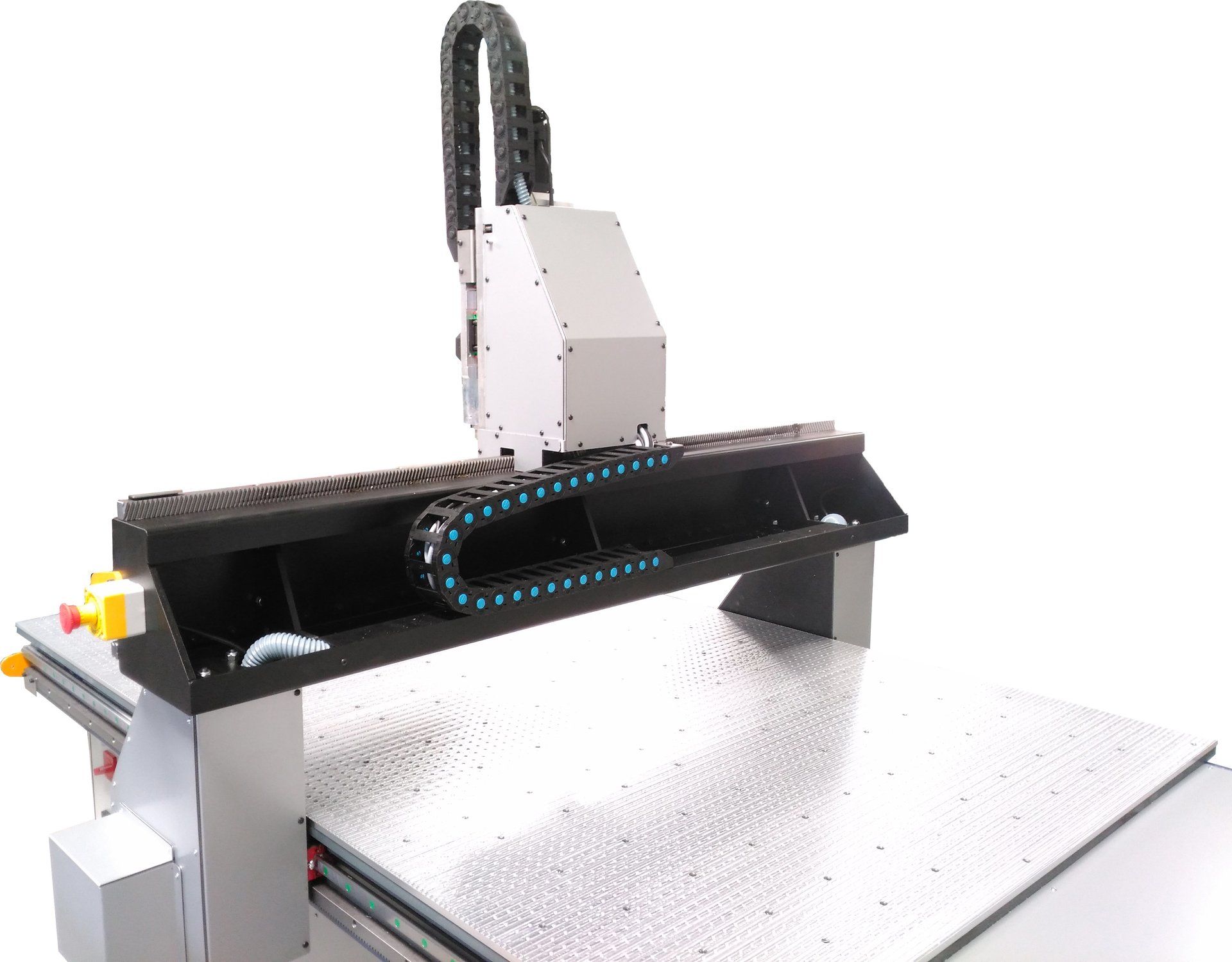

• Y axis: engine with precision planetary gearbox, helical rack and tempered and machined pinion.

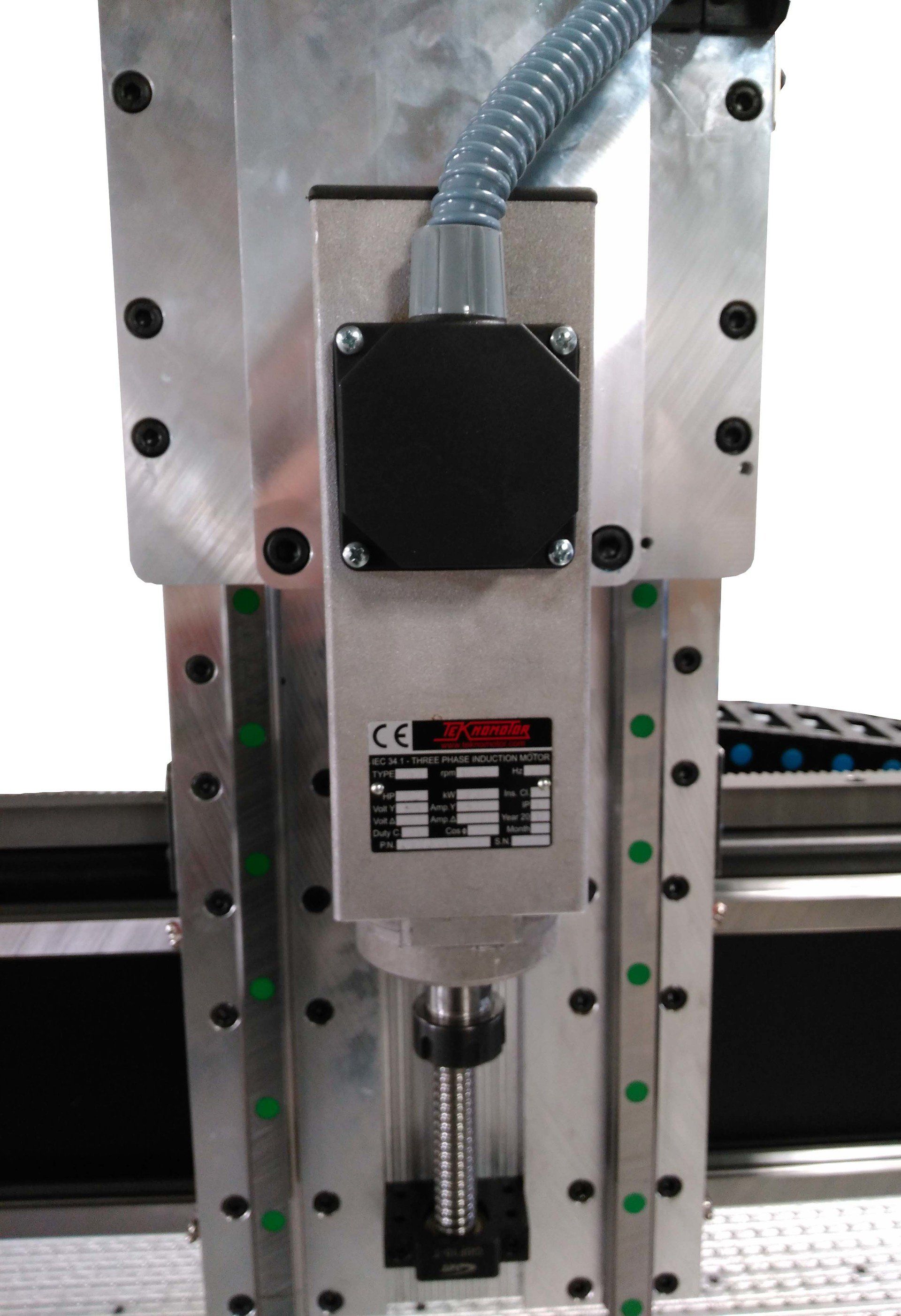

• Z axis: Direct drive engine to the spindle, with 20 mm ball recirculation nut.
• TeknoMotor 2 Kw AF milling engine, with 2.2 Kw Mitsubishi variator and variable speeds from 0 to 18,000 rpm. Tool holder by ER20 Clamp that allows a tool diameter of 1 to 12 mm.
• 4 Hybrid engine with Encoder.
• 4 AC Digital Drivers.
• 4 inductive positioning sensors.
• Encoder resolution engine 10,000 psi / rev.
• Machining Electronic resolution of 0.025 mm.

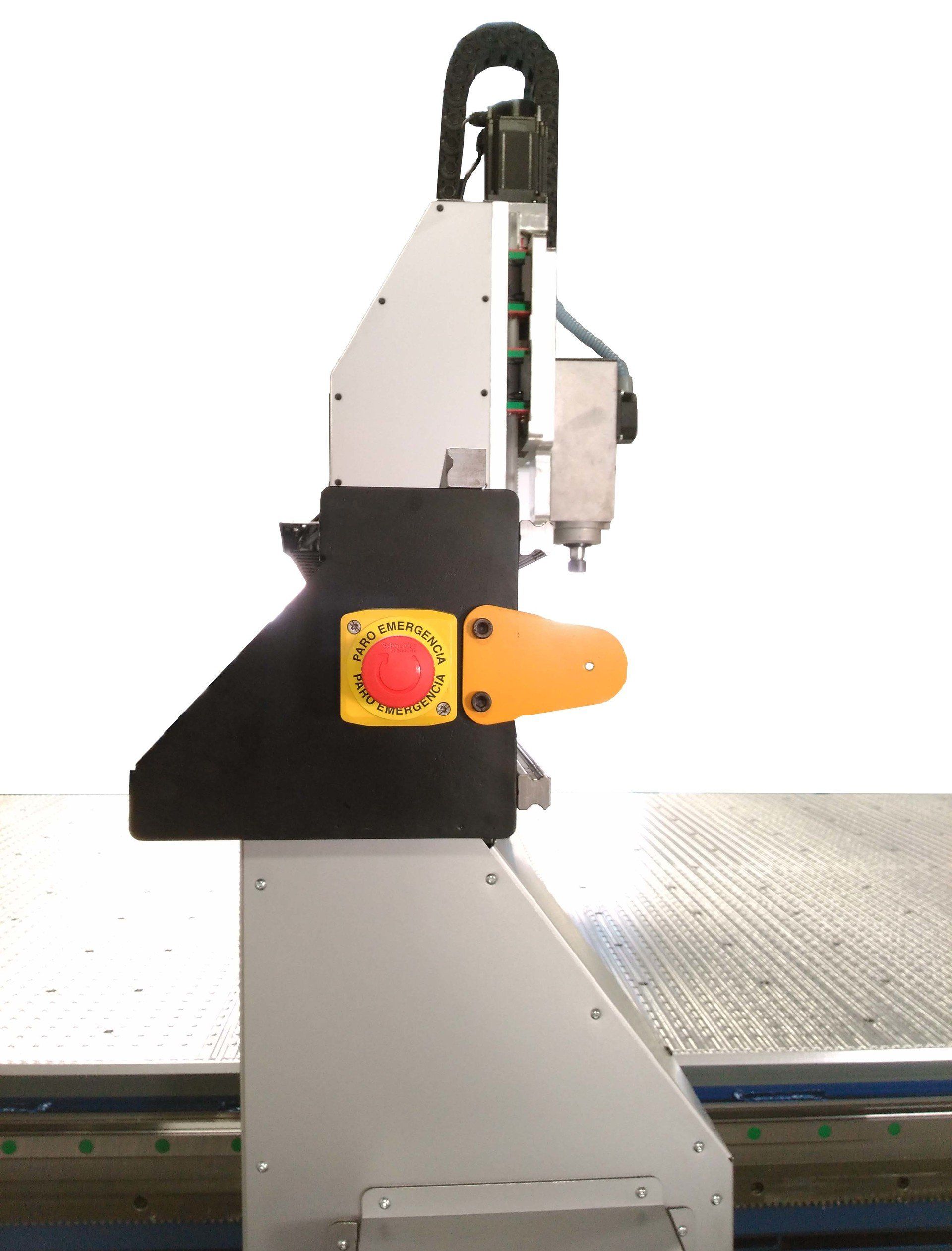

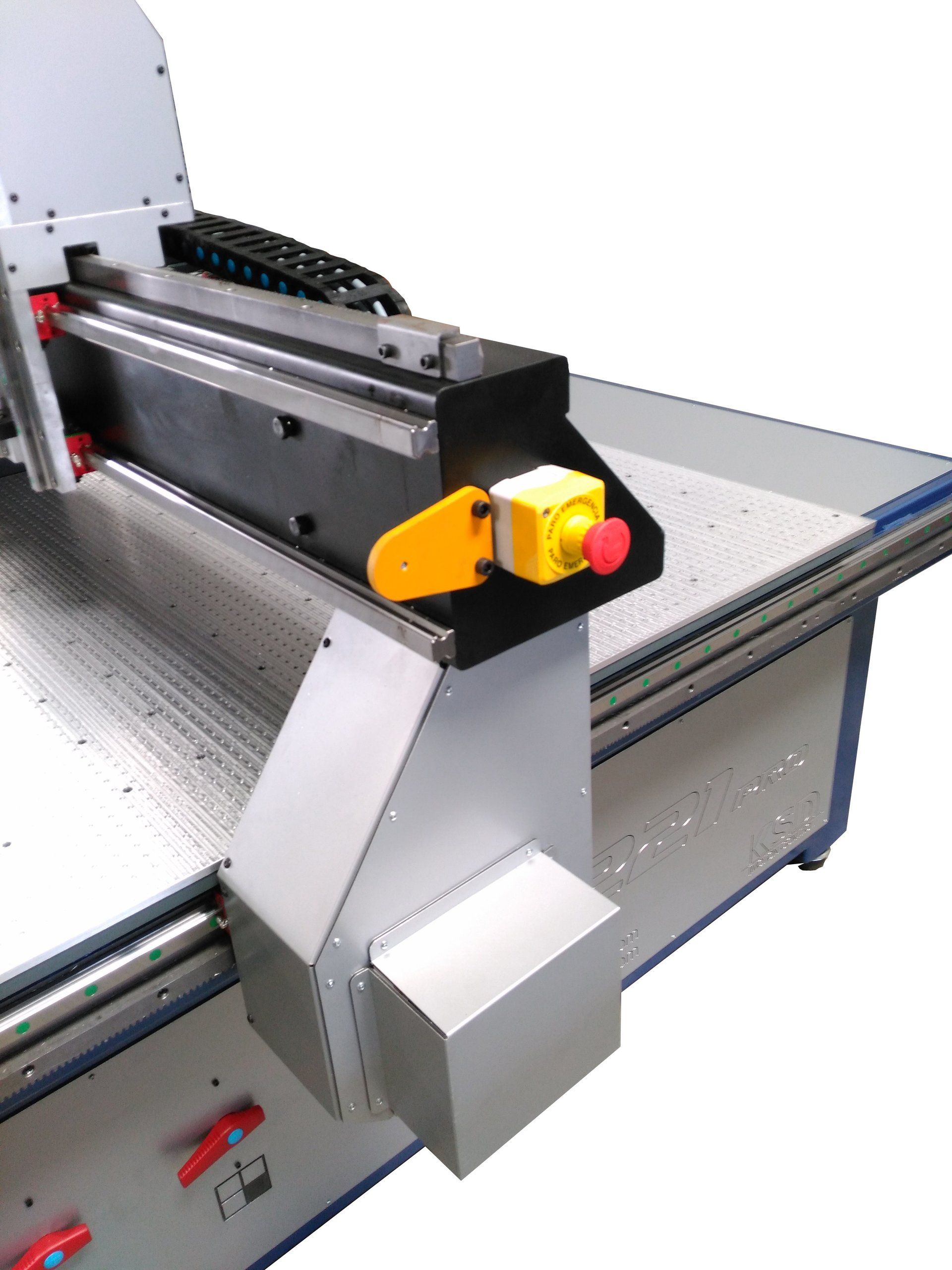

• 3 Emergency stop points.
• Automatic calibration of the height of the tool.
