KSD 1225 2Z

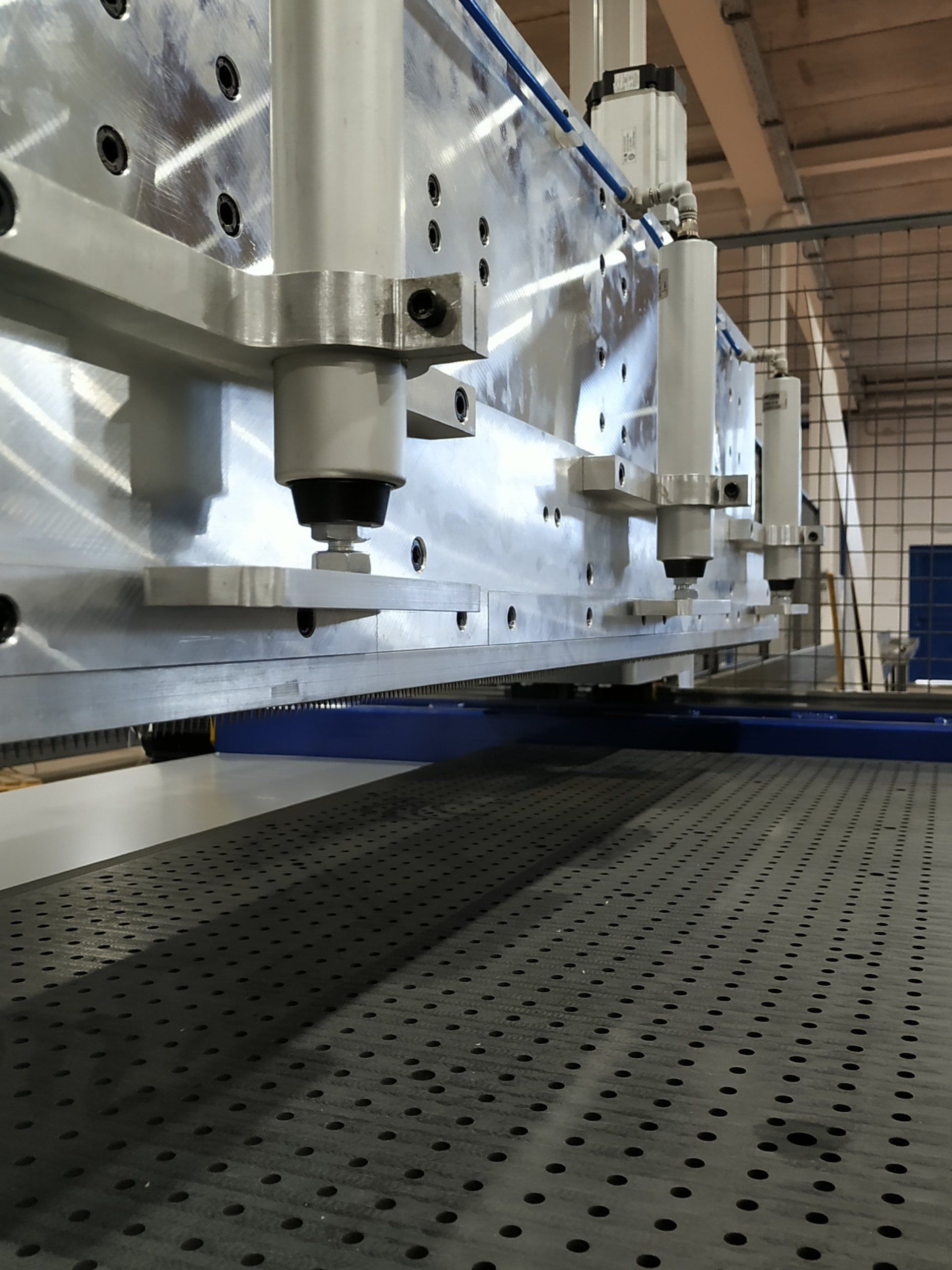

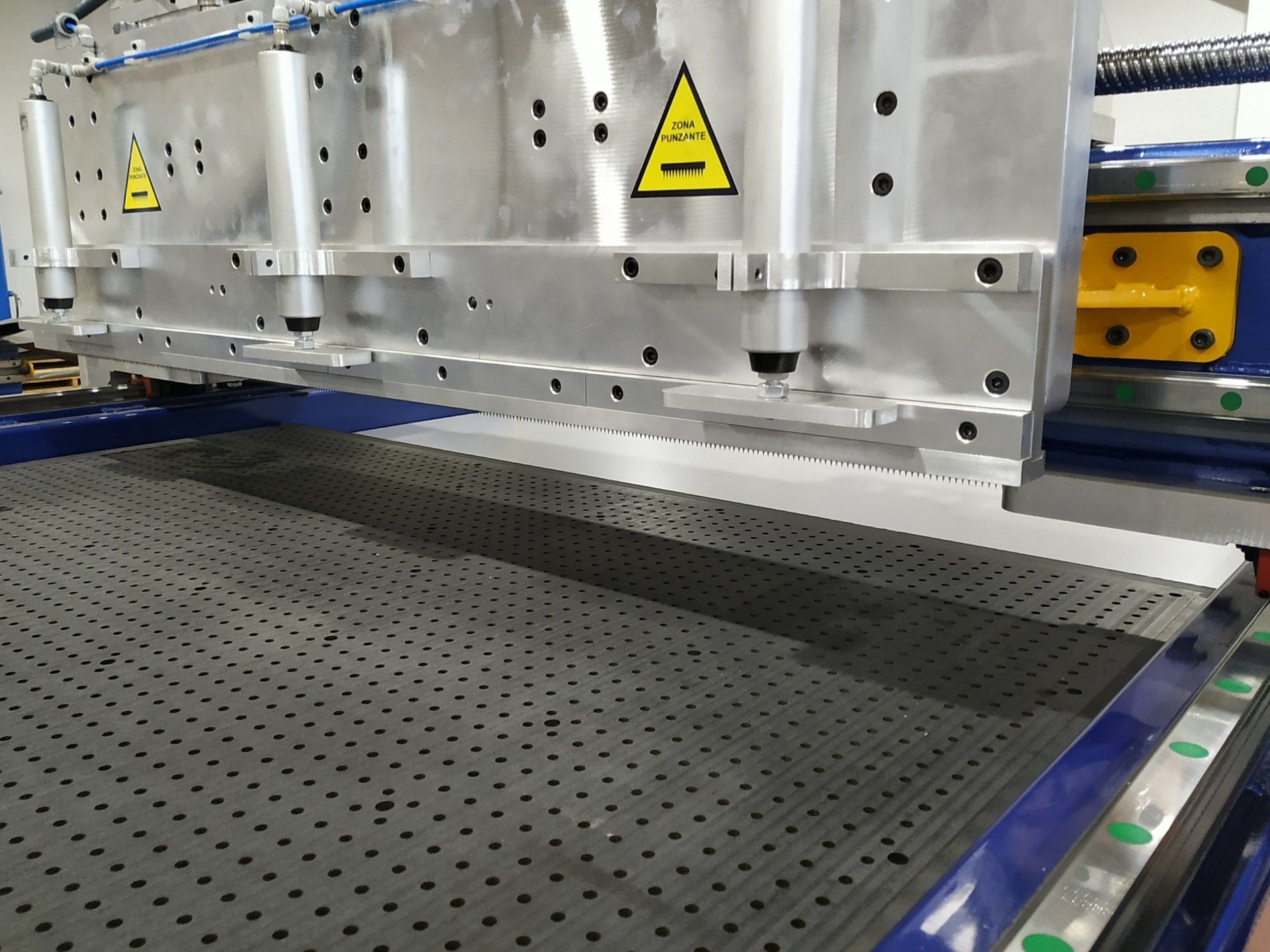

The machine style KSD 1225 2Z, is a punching machine of numerical control CNC, professional, of high performance, of three axes with bedplate (table of work) and mobile bridge with displacement on all the useful surface of work. It is equipped with a vacuum system on the entire work surface.
The machine style KSD 1225 2Z, is a punching machine of numerical control CNC, professional, of high performance, of three axes with bedplate (table of work) and mobile bridge with displacement on all the useful surface of work. It is equipped with a vacuum system on the entire work surface.
Is composed of:
• Monocoque chassis in CNC rectified steel.
• Useful size: 1260x2500x80 mm.
• Vacuum table composed of: 2 plates of high density phenolic panel TRESPA of 20 mm. 20 mm PVC plate. Double perforated system.
• Motor vacuum pump of 5.5 Kw 380 vAC of double stage, -400 mbar, 500 m³ / hour.
• Safety valve for excess vacuum.
• 2 independent vacuum zones.
• X: 30 mm square guides. with 13 HGR30R linear bearings.
• Y: 25 mm square guides. with 2 linear bearings HGR25R.
• Z: 25 mm square guides. with 10 linear bearings HGW25.
• X, Y: spindle screw with 32 mm ball recirculation nut and BK / BF supports.
• X axis: Double direct drive motor to spindle, with 20 mm ball recirculation nut. (one in each guide)
• X1, X2: Panasonic A5-1,5 Kw-A1 engines
• Y axis: Direct drive engine to the spindle, with 20 mm ball recirculation nut.
• Y1: Panasonic A5-1,5 Kw-A1 engine
• Z axis: Double direct drive motor to the spindle, with 20 mm ball recirculation nut.
• Z1, Z2: Panasonic LIQI 1 Kw motors.
• 2 AC Digital Drivers. MCDJT3220.
• 3 AC Digital Drivers. MDDHT3420.
• 5 inductive positioning sensors.
• Motors Encoder resolution 10,000 psi / rev.
• Electronic resolution of 0.025 mm machining.
• 3 Emergency stop points.
• Automatic calibration of the height of the tool.
• Panasonic photoelectric barrier.
