KSD 1326 PRO

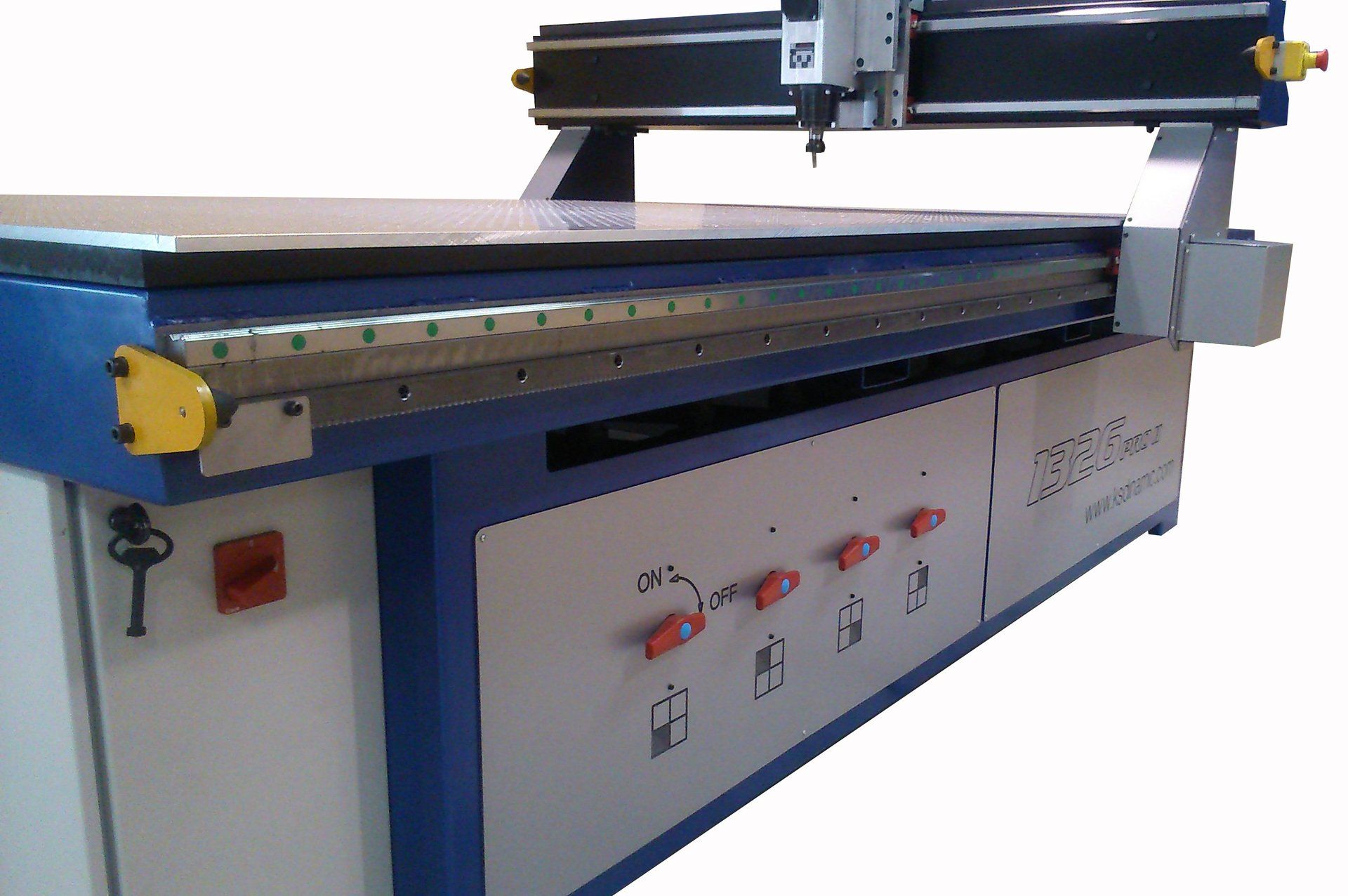

KSD 1326 PRO is a milling machine of numerical control CNC, professional, of high performance, of three axes with bench (table of work) and mobile bridge with displacement on all the useful surface of work, where the milling motor is placed .
KSD 1326 PRO is a milling machine of numerical control CNC, professional, of high performance, of three axes with bench (table of work) and mobile bridge with displacement on all the useful surface of work, where the milling motor is placed .
Is composed of:
• Monocoque chassis in CNC machined steel
• Useful size: 1320x2600x200 mm.
• Bench formed by grooved aluminum plate on the entire working surface of 20 mm with 41 grooves to house the fastening elements of the materials to be machined.
• XYZ: Square guides of 25 mm with 12 linear bearings HGW25.

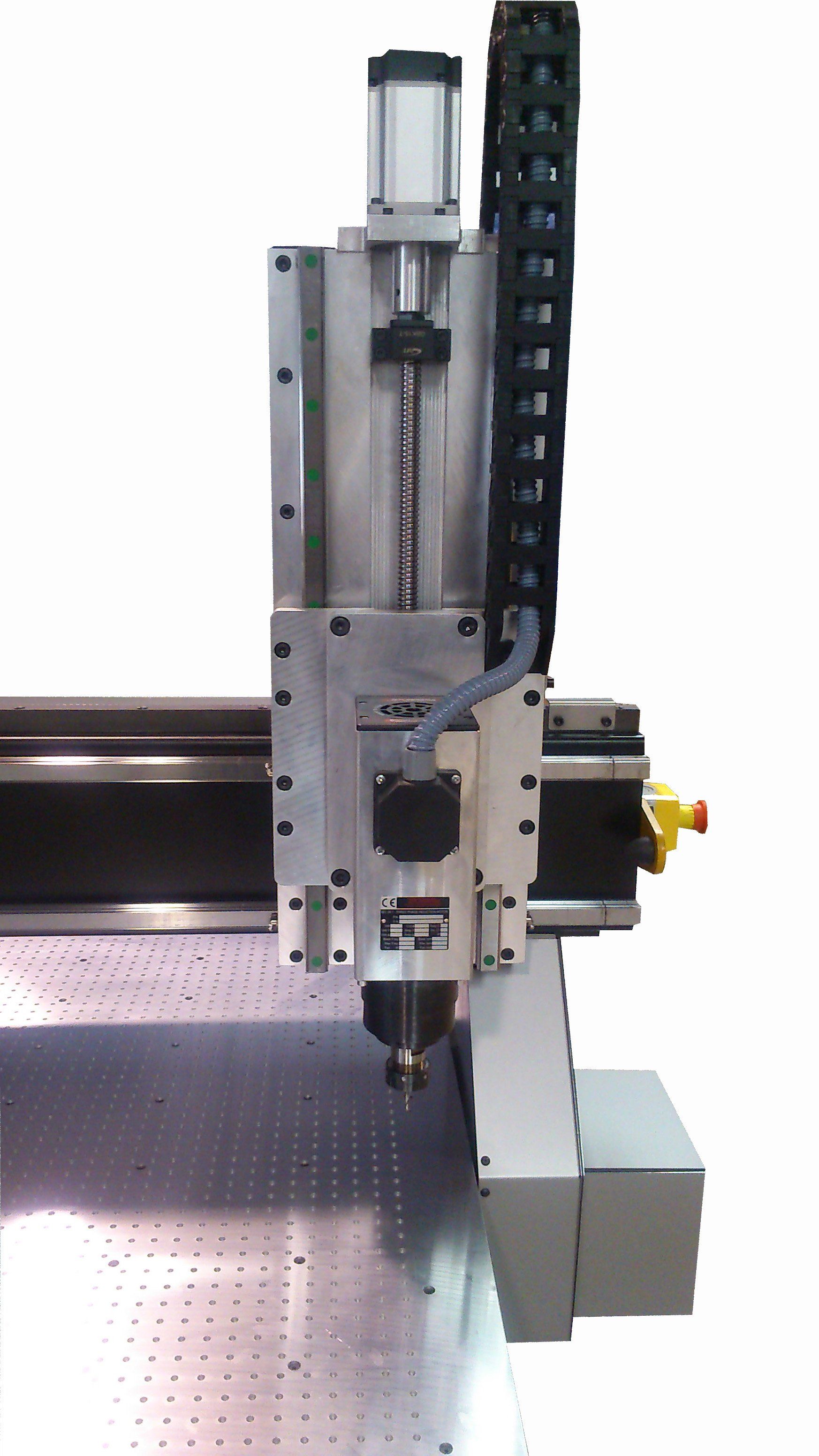

• Z: Rolled ball screw with 20 mm ball recirculation nut and BK / BF supports.
• X axis: Double motor (one in each guide) Gantry system with precision planetary gearbox, helical rack and temptered and rectified pinion.
• Y axis: Motor with precision planetary gearbox, helical rack and temptered and rectified pinion.

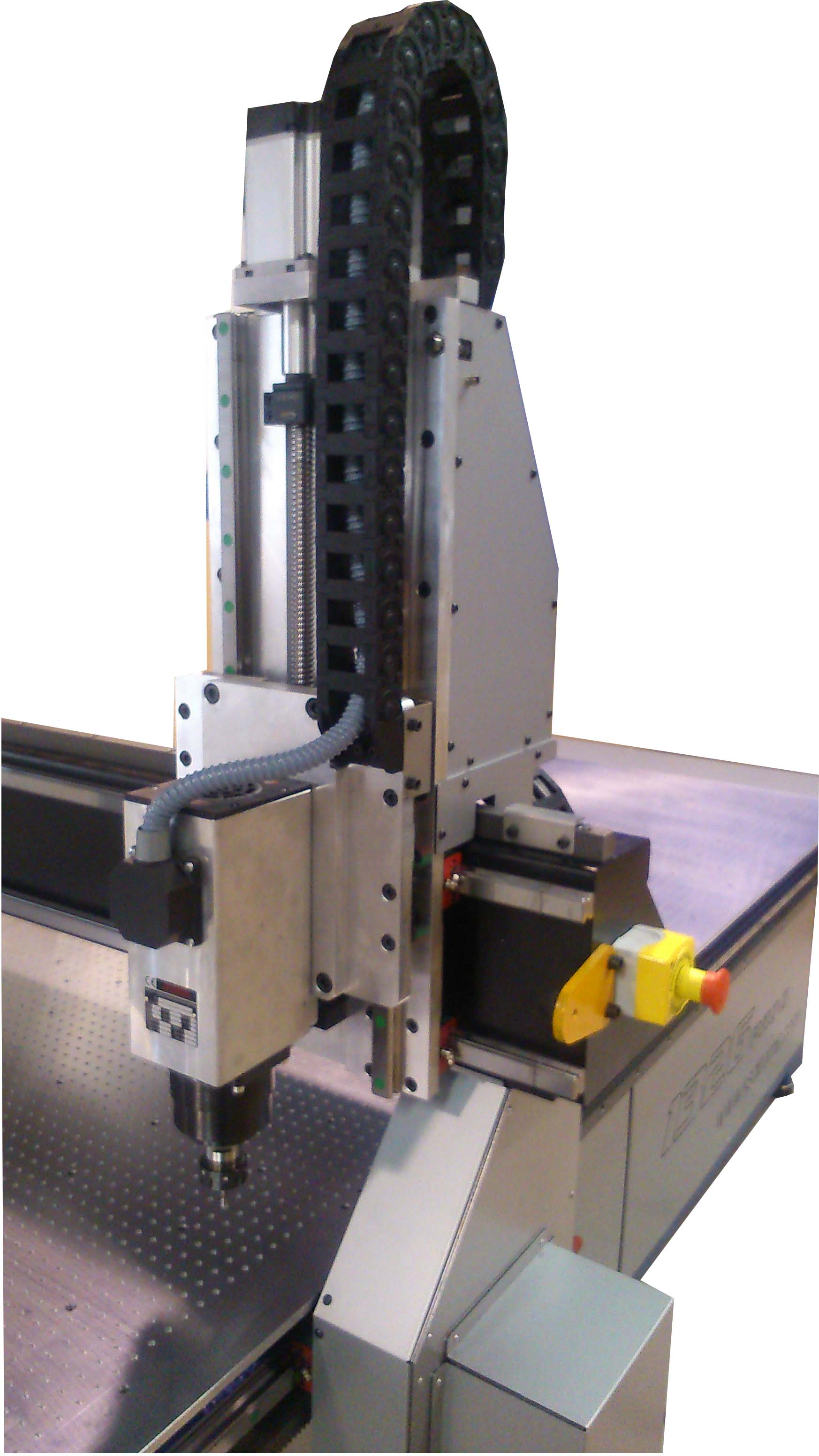

• Z axis: Direct drive motor to the spindle, with 20 mm ball recirculation nut.
• TeknoMotor 2 Kw AF milling engines, with 2.2 Kw Mitsubishi inverter and variable speeds from 0 to 18,000 rpm. Tool holder by ER20 Clamp that allows a tool diameter of 1 to 12 mm.
• 4 Hybrid engines with Encoder.
• 4 AC Digital Drivers.
• 4 inductive positioning sensors.
• Encoder engine resolution 10,000 psi / rev.
• Electronic resolution of 0.025 mm machining.

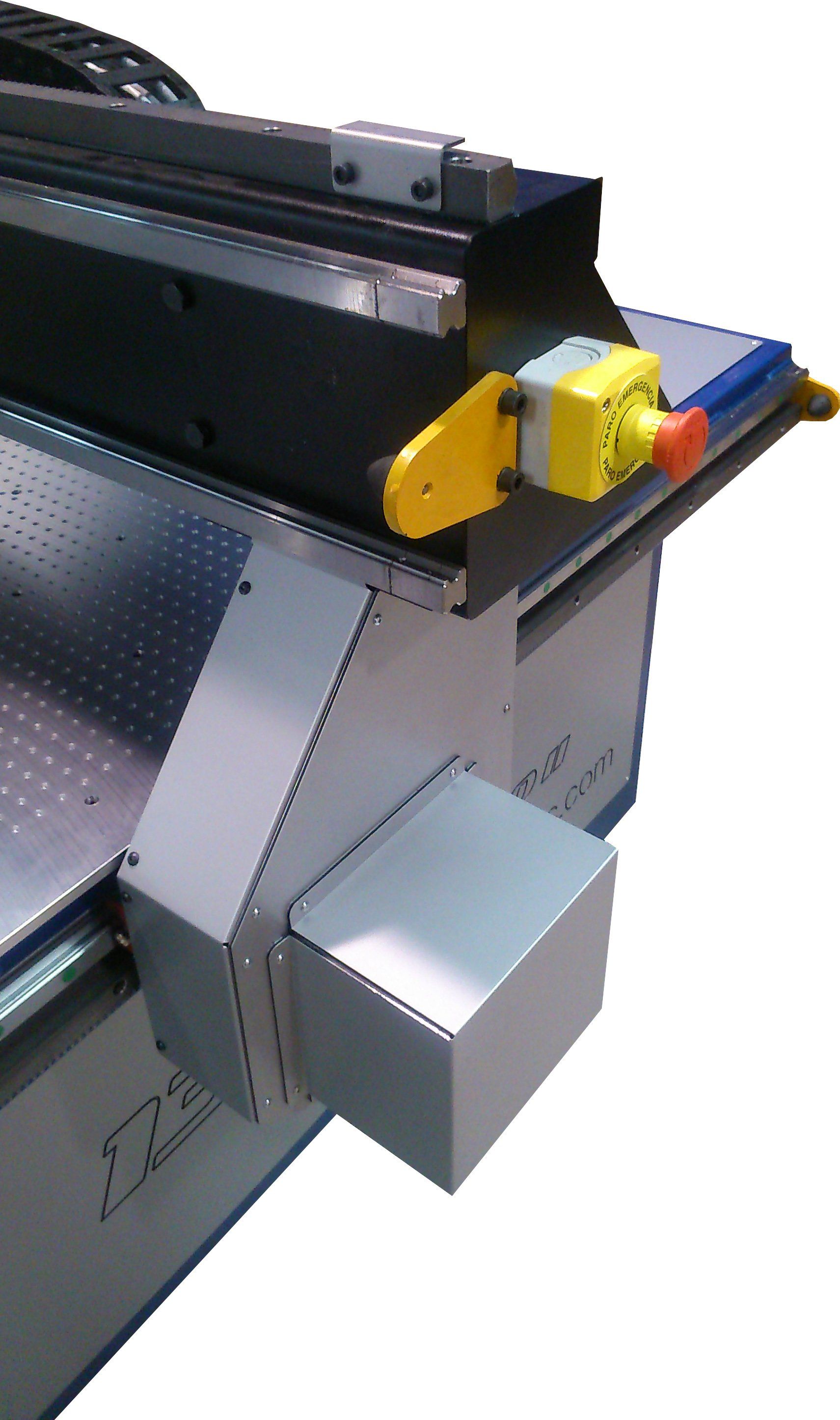

• 3 Emergency stop points.
• Automatic calibration of the height of the tool.
