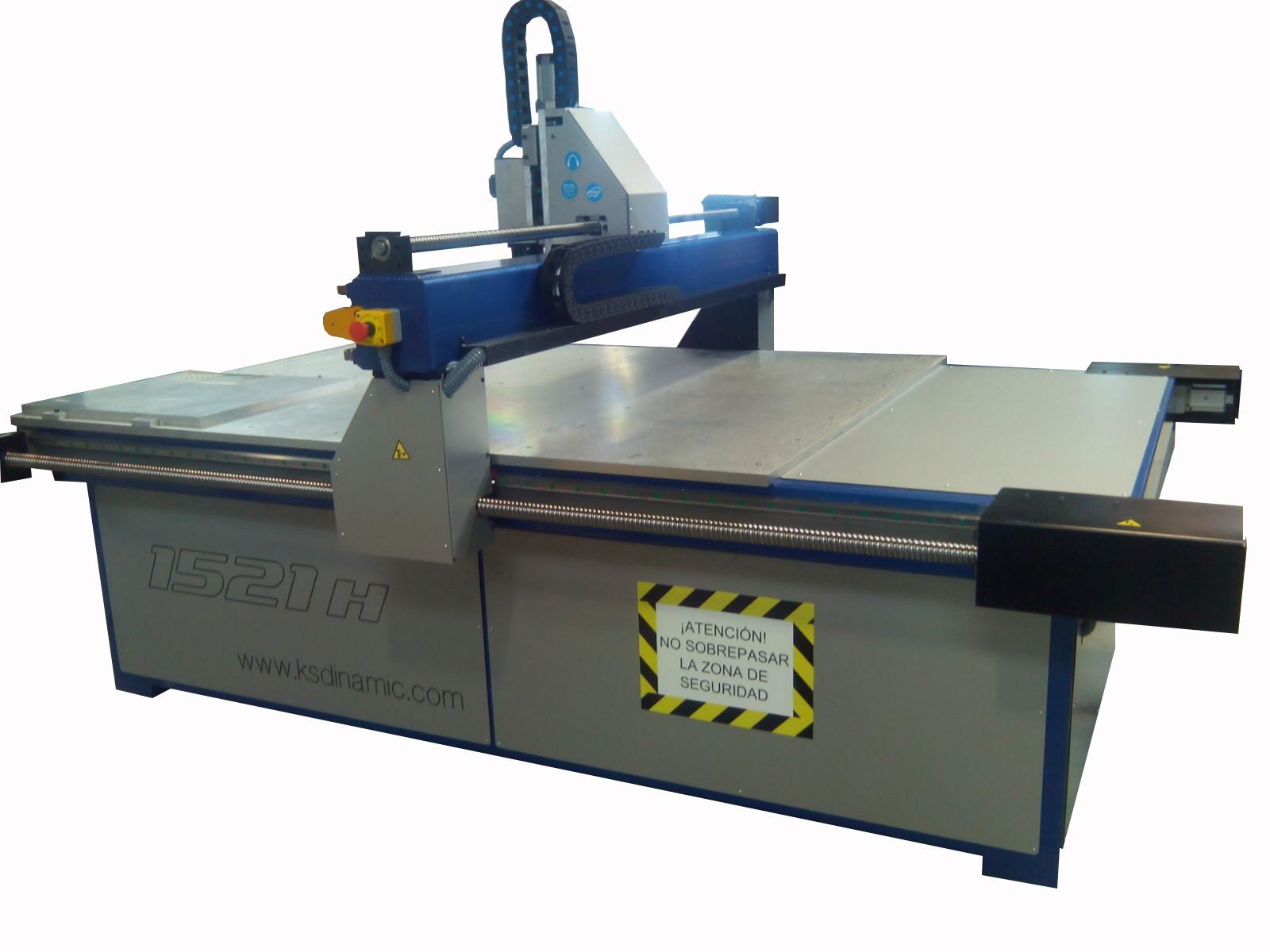

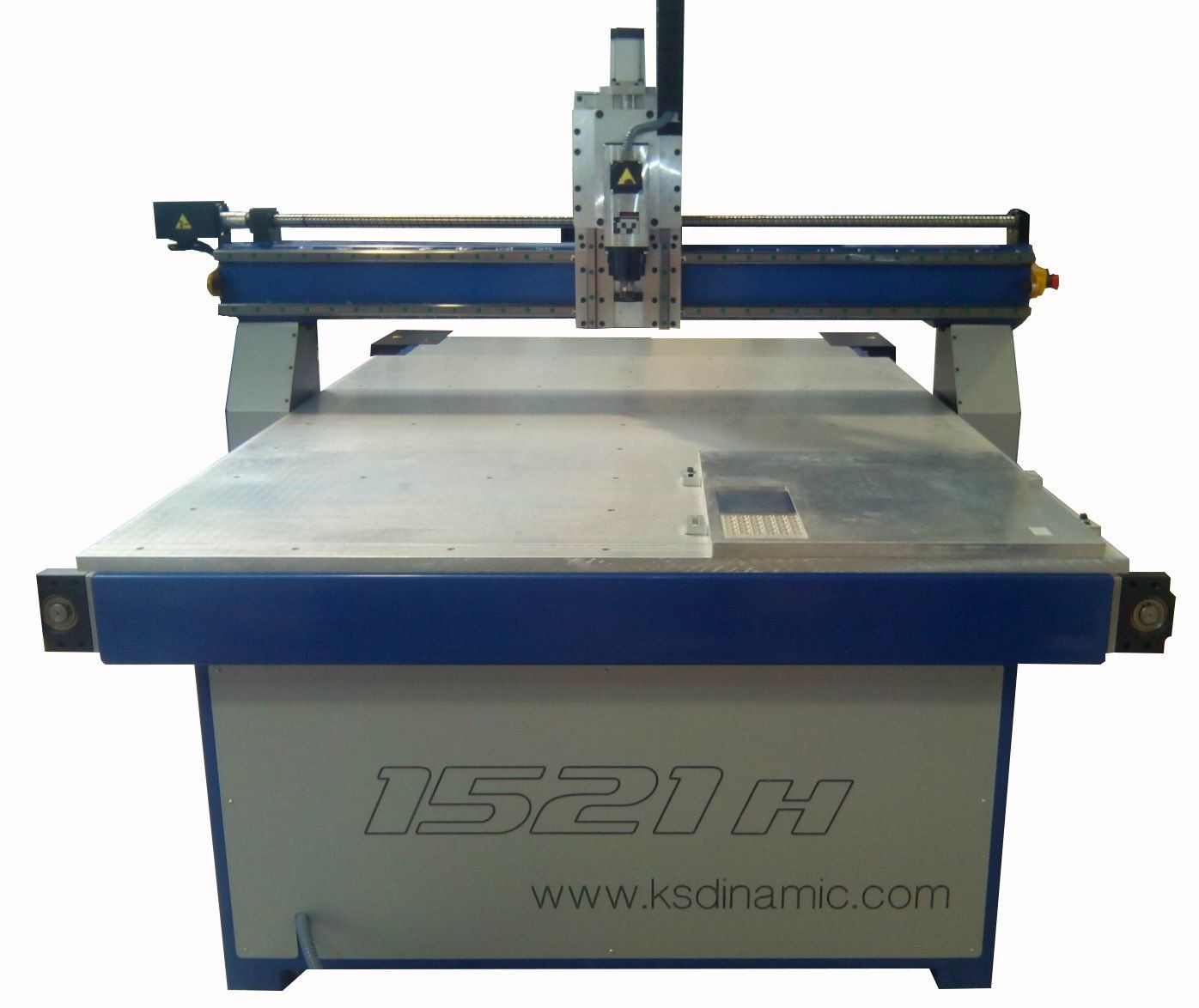

KSD 1521 H

KSD PRO 1521-4K is a milling engine of numerical control CNC, professional, of high performance, of three axes with bench (table of work) and mobile bridge with displacement on all the useful surface of work, where lodges the milling engine.

Is composed of:

• Monocoque chassis in steel 150x100x4 rectified in CNC.
• Useful size: 1500x2100x180 mm.
• Bench formed by aluminum plate throughout the useful work surface.
• Z: Rolled ball screw with 20 mm ball recirculation nut and BK / BF supports.
• X-axis: Double Panasonic AC380V Servomotor (one in each guide) Tandem System, with laminated ball screw with recirculation nut with pre-charged balls of 40 mm and BK / BF supports.

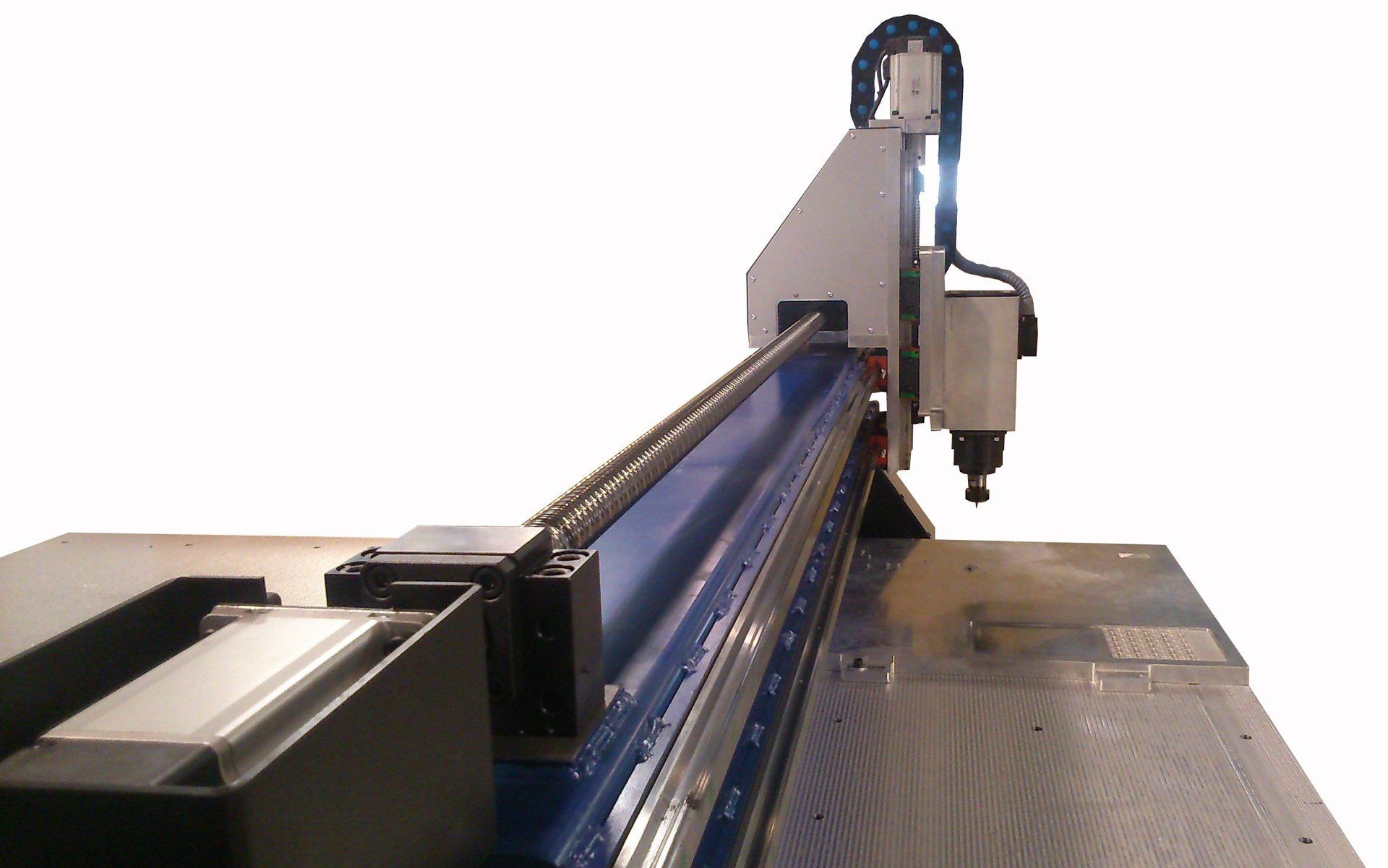

• Y-axis: Panasonic AC380V servo engine with ball screw, laminated with recirculation nut with preloaded ball of 32 mm and BK / BF supports.
• Z-axis: Panasonic AC380V servo engine with direct transmission to the spindle, with recirculation nut with pre-charged balls of 20 mm.

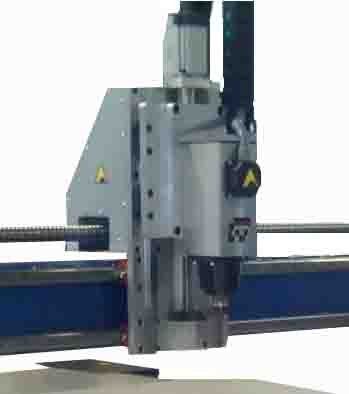

• TeknoMotor 4,5 Kw AF milling engine, with 5.5 Kw Mitsubishi inverter and variable speeds from 0 to 18,000 rpm.
• 4 Panasonic AC380V servo engines.
• 4 Panasonic AC380V Drivers.
• 4 inductive positioning sensors.
• Encoder resolution engine 10,000 psi / rev.
• Electronic resolution of 0.025 mm machining.
• Dedicated laptop.
• CNC control KSD 4.03.18 (G-Code Iso, PLT, DXF).
• Communication via Ethernet cat. 5.
• Control MPG control.
• On-screen job display and remaining time estimation.
• 9 points on XY axes of programmable initial work.
• Matrix programming machining at the foot of the machine.
• Start of the program at any point of the machining.
• Change of speed of execution and revolutions of the milling engines in real time.
• 2 emergency stop points.
• Automatic calibration of the height of the tool.
• Enclosure of perimeter with security barrier.
