KSD 2131 PRO

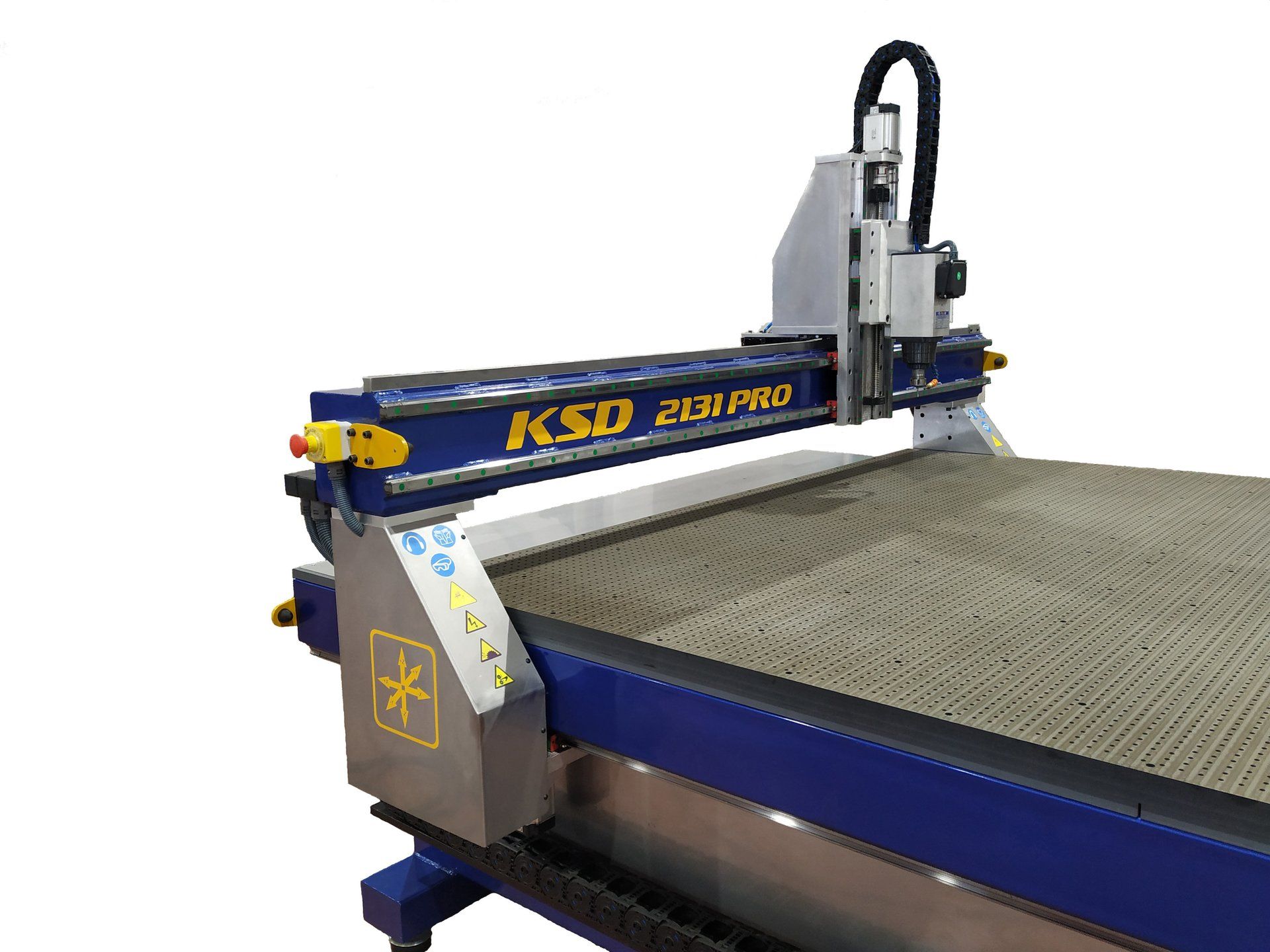

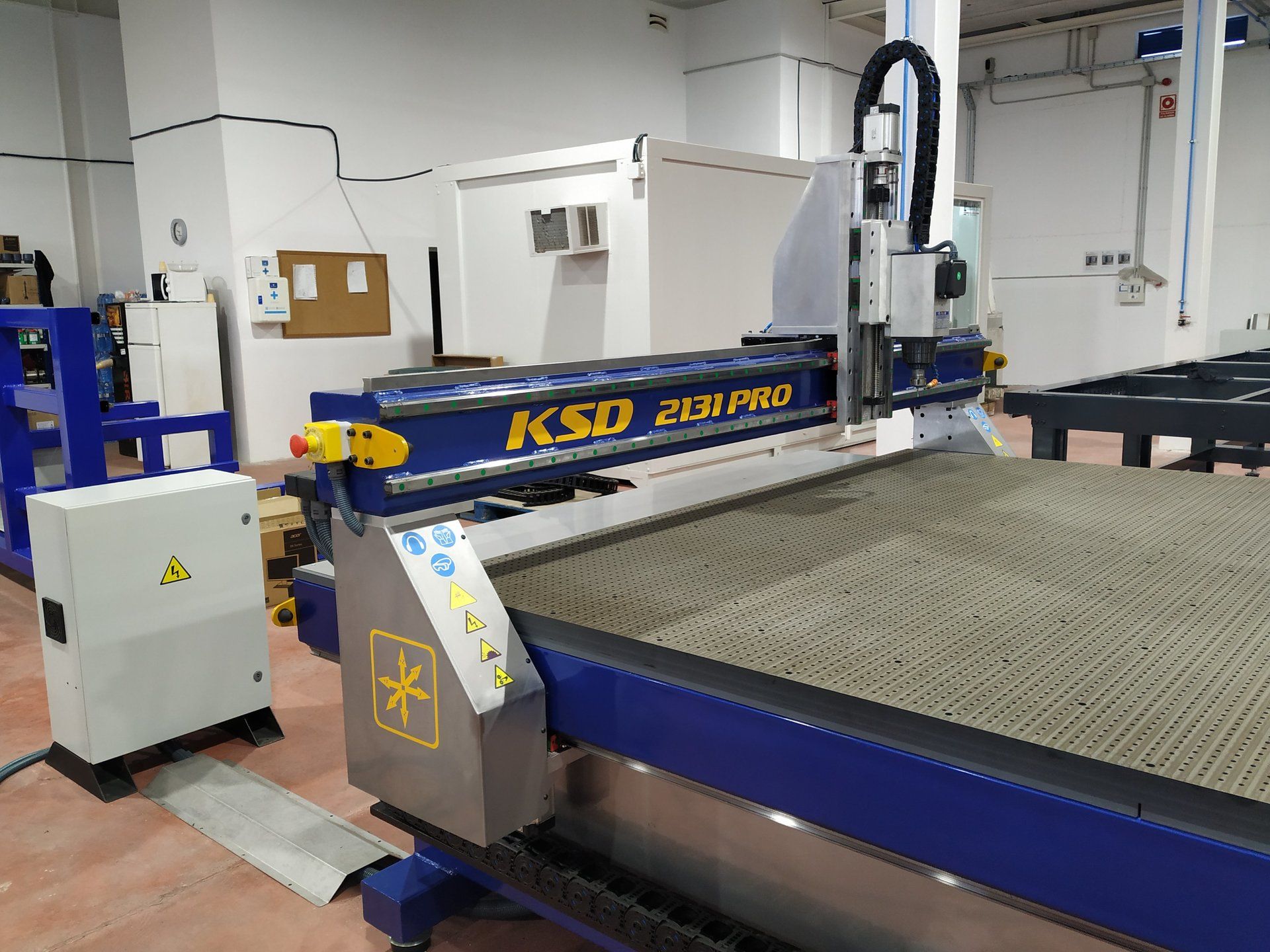

The model of machine KSD 2131 PRO, is a milling machine of numerical control CNC, professional, of high performance, of three axes with bancada (table of work) and mobile bridge with displacement on all the useful surface of work, where lodge the milling motor. It is equipped with a vacuum system on the entire work surface.
The model of machine KSD 2131 PRO, is a milling machine of numerical control CNC, professional, of high performance, of three axes with bancada (table of work) and mobile bridge with displacement on all the useful surface of work, where lodge the milling motor. It is equipped with a vacuum system on the entire work surface.
Is composed of:
• Monocoque chassis in CNC rectrified steel.
• Useful size: 2100x3150x200 mm.
• Vacuum table composed of: 2 plates of high density phenolic panel TRESPA of 20 mm. 20 mm PVC plate. Double perforated system.

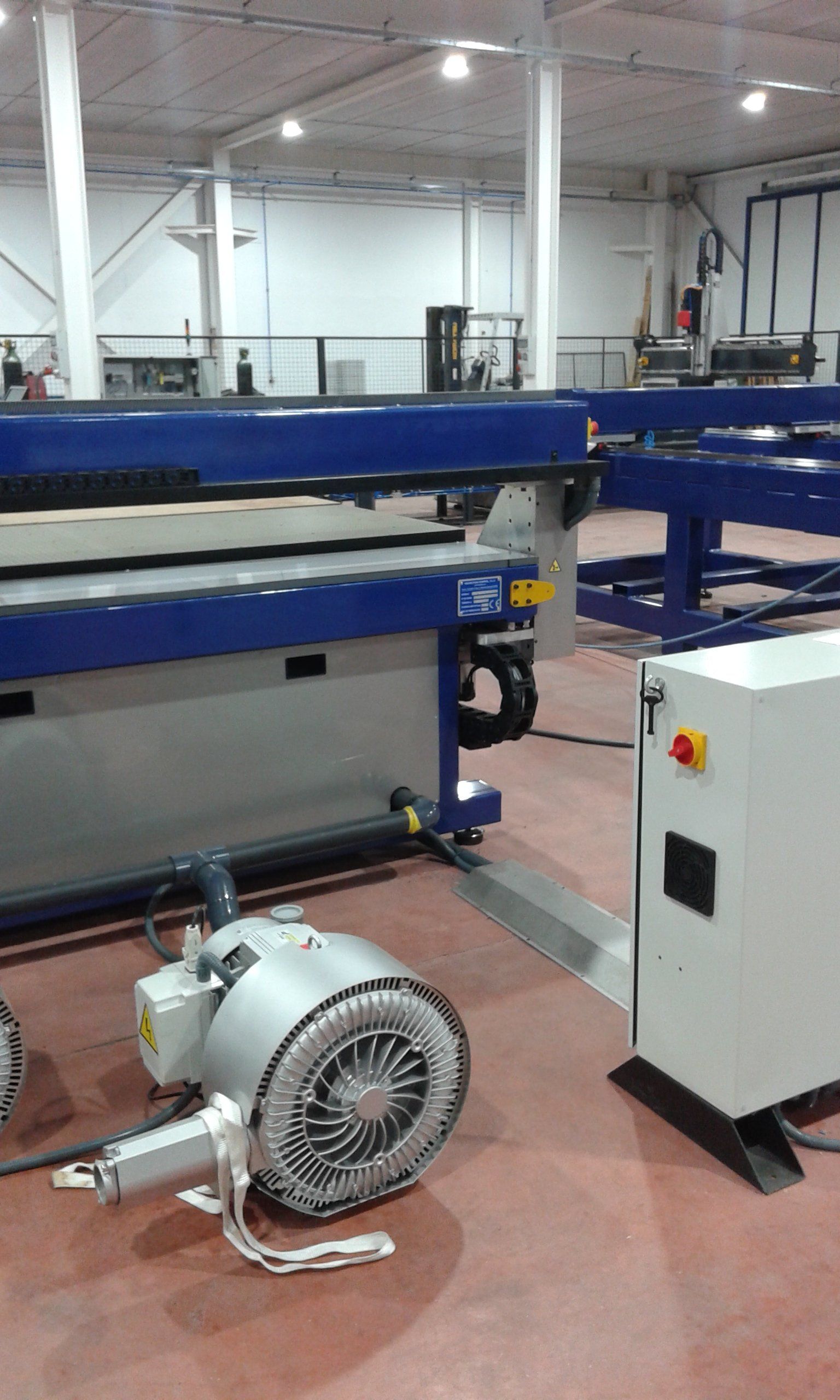

• Motor vacuum pump of 5.5 Kw 380 vAC of double stage, -400 mbar, 500 m³ / hour.
• Safety valve for excess vacuum.
• 4 independent vacuum zones.
• XYZ: Square guides of 25 mm with 12 linear bearings HGW25.
• Z: Rolled ball screw with 20 mm ball recirculation nut and BK / BF supports.
• X axis: Double motor (one in each guide) Gantry system with precision planetary gearbox, helical rack and hardened and ground pinion.
• Y axis: Motor with precision planetary gearbox, helical rack and hardened and ground pinion.
• Z axis: Direct drive motor to the spindle, with 20 mm ball recirculation nut.

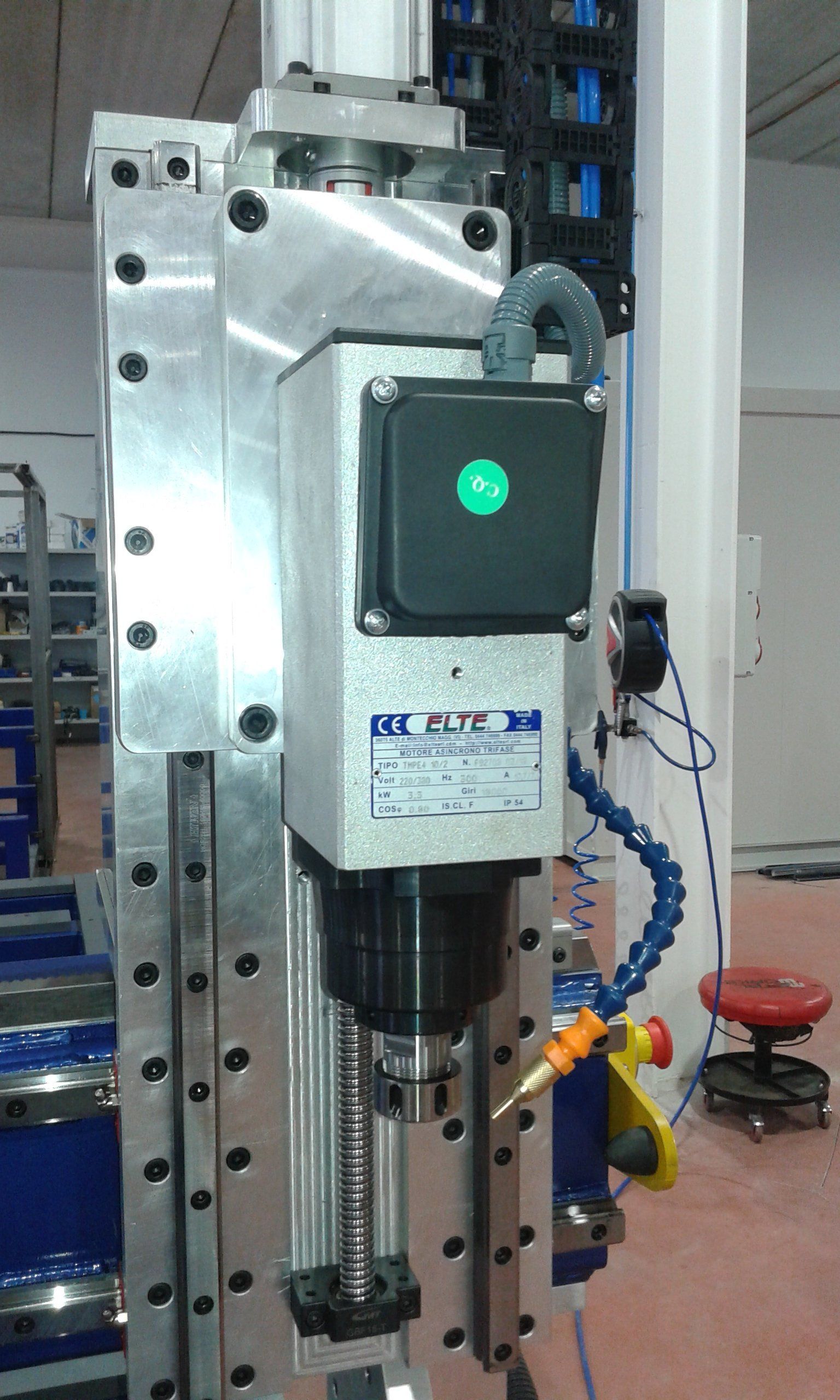

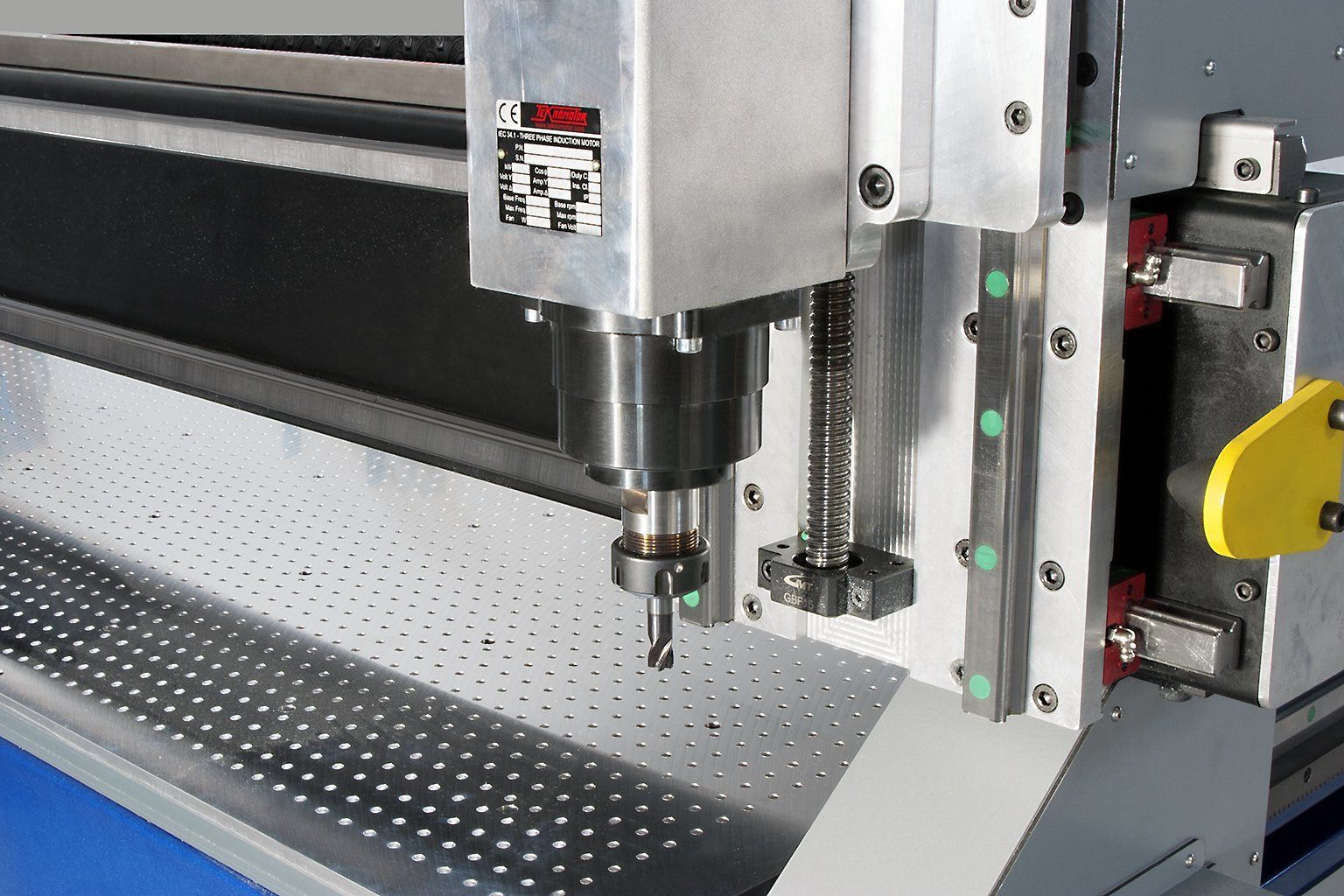

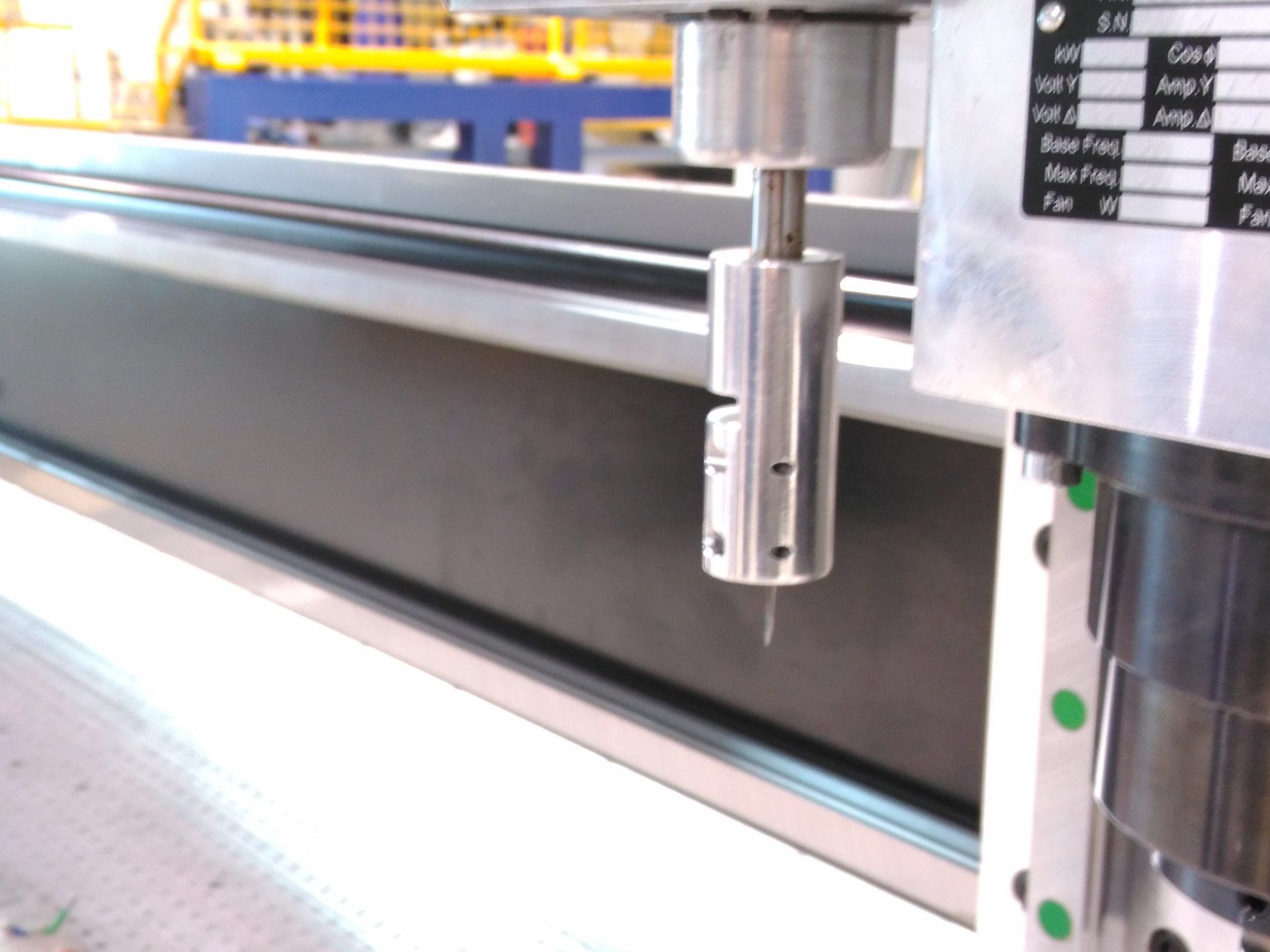

• 3.3 Kw ELTE milling motor, with 3.72 Kw Mitsubishi inverter and variable speeds from 0 to 18,000 rpm. Tool holder by ER25 Clamp that allows a tool diameter of 1 to 16 mm.
• 4 motors Panasonic MSMD102J1S.
• 4 AC Digital Drivers. MCDJT3220.
• 4 inductive positioning sensors.
• Motors Encoder resolution 10,000 psi Est composée de:
/ rev.
• Machining Electronic resolution of 0.025 mm

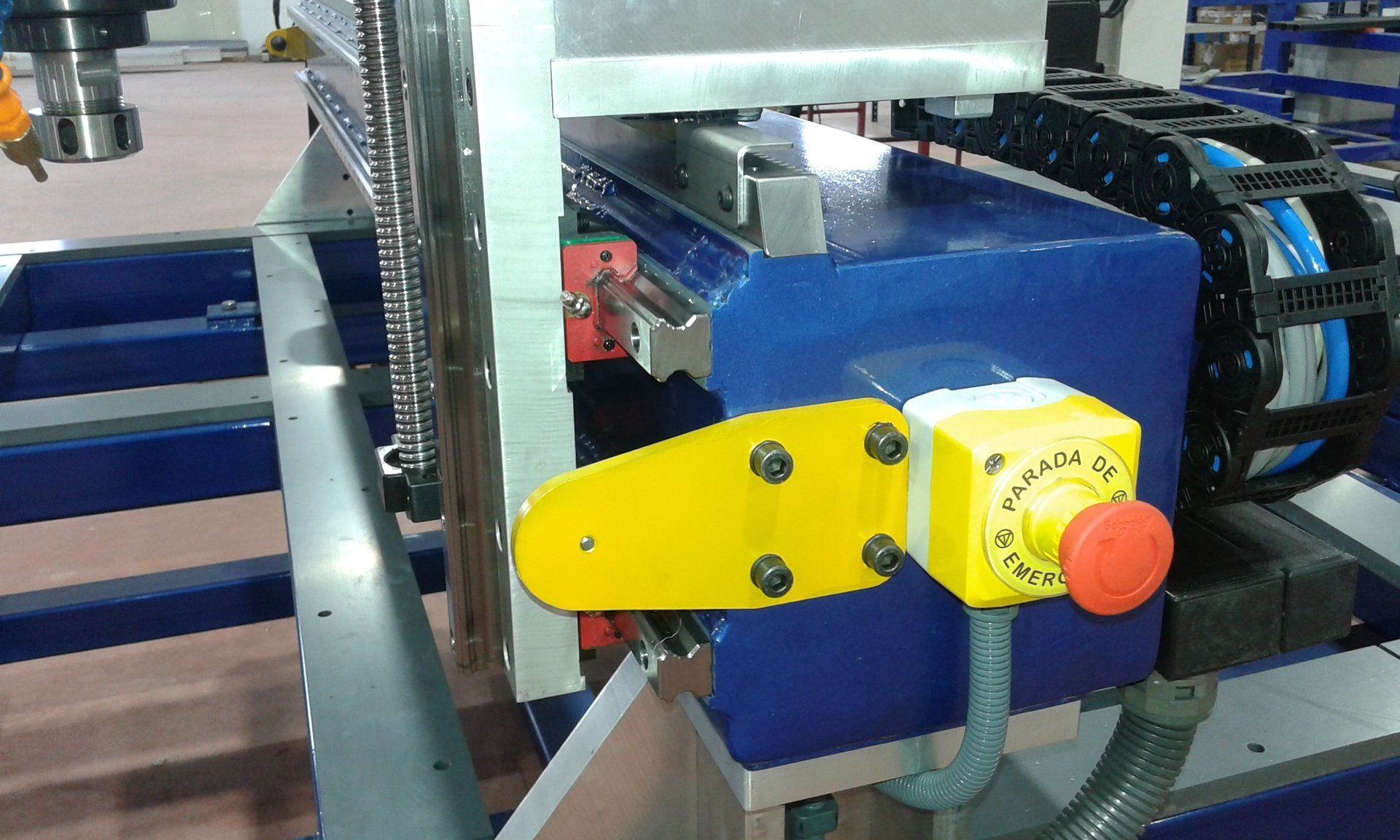

• 3 Emergency stop points.
• Automatic calibration of the height of the tool.
• Panasonic photoelectric barrier.
