KSD 1550 ATC

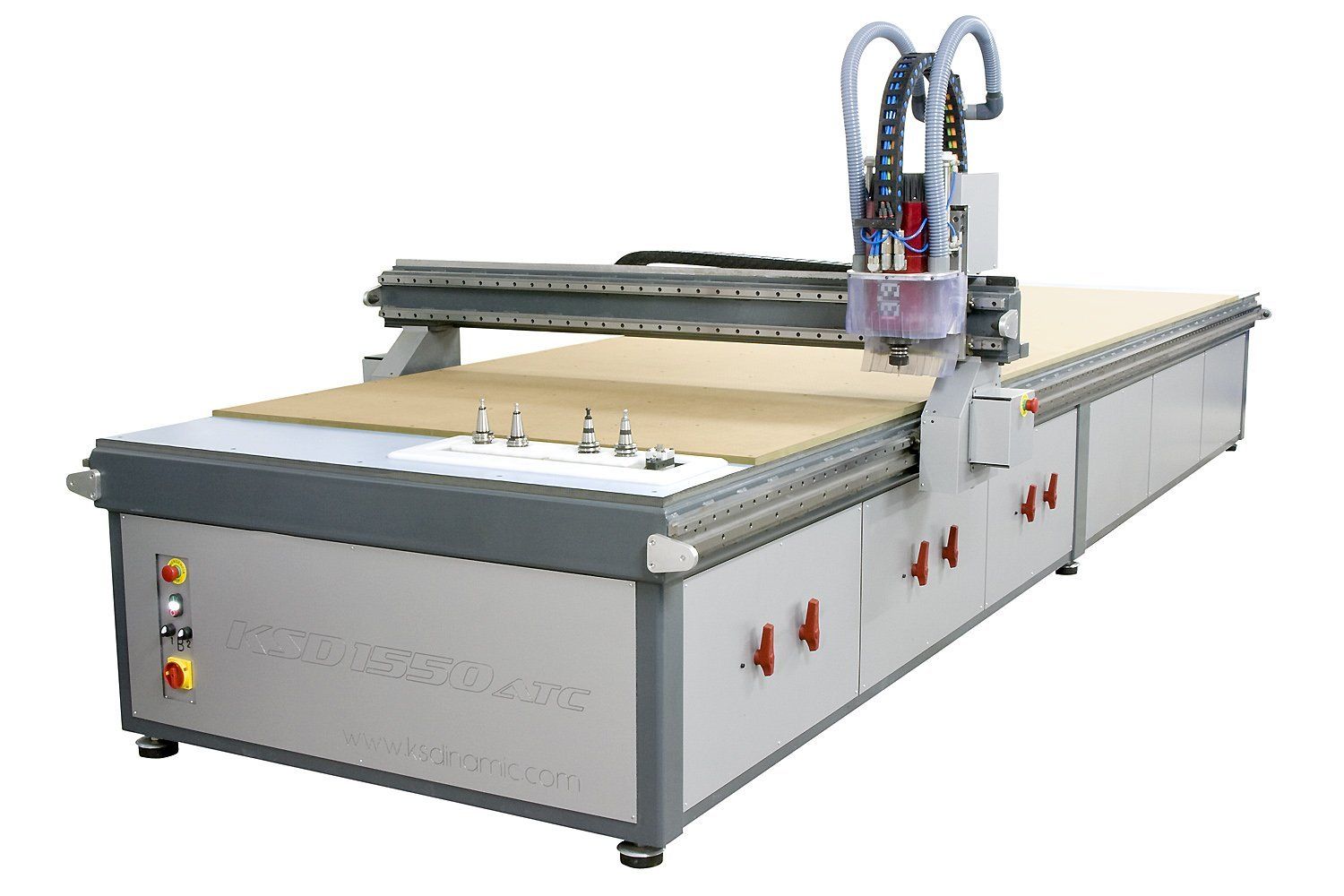

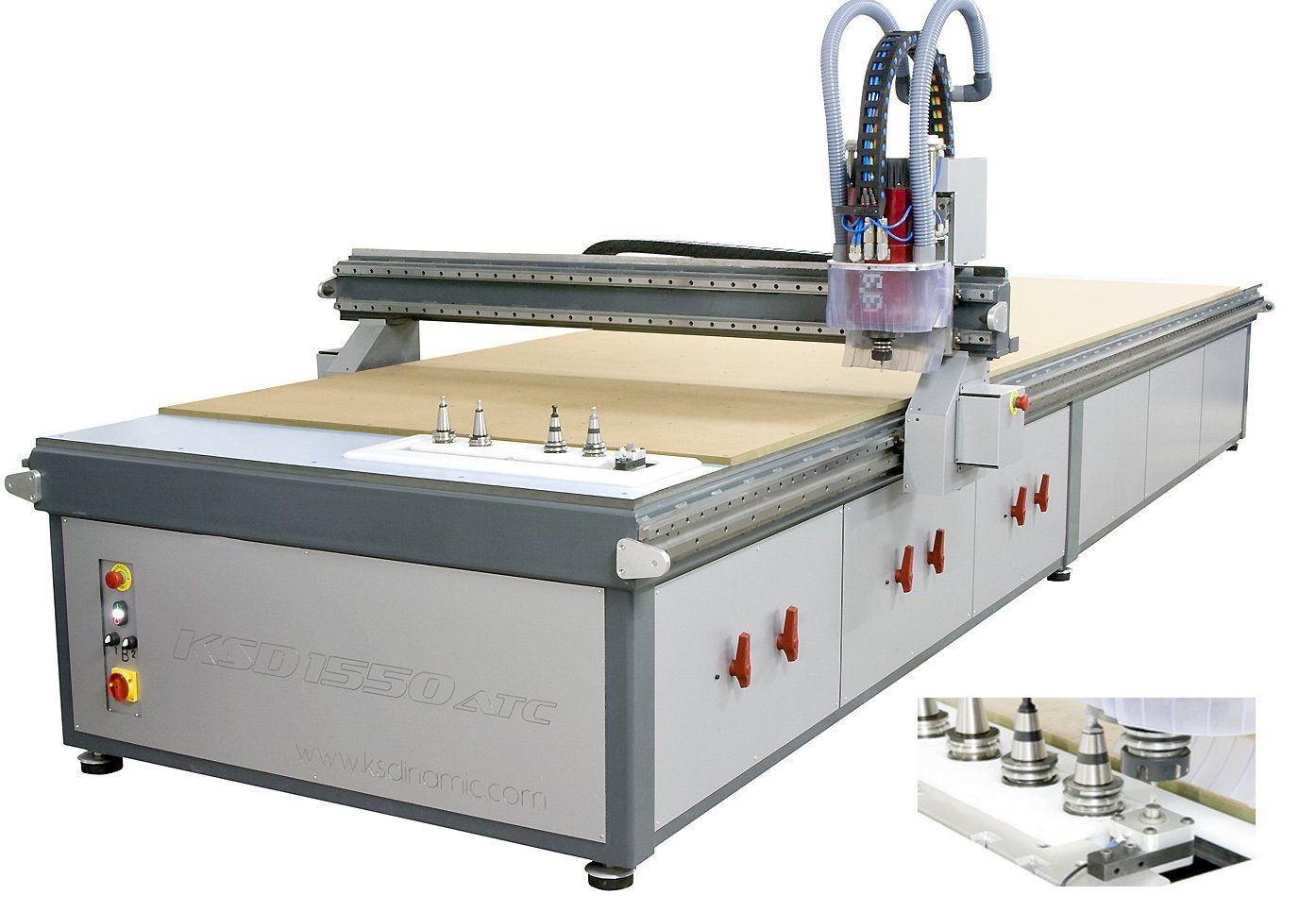

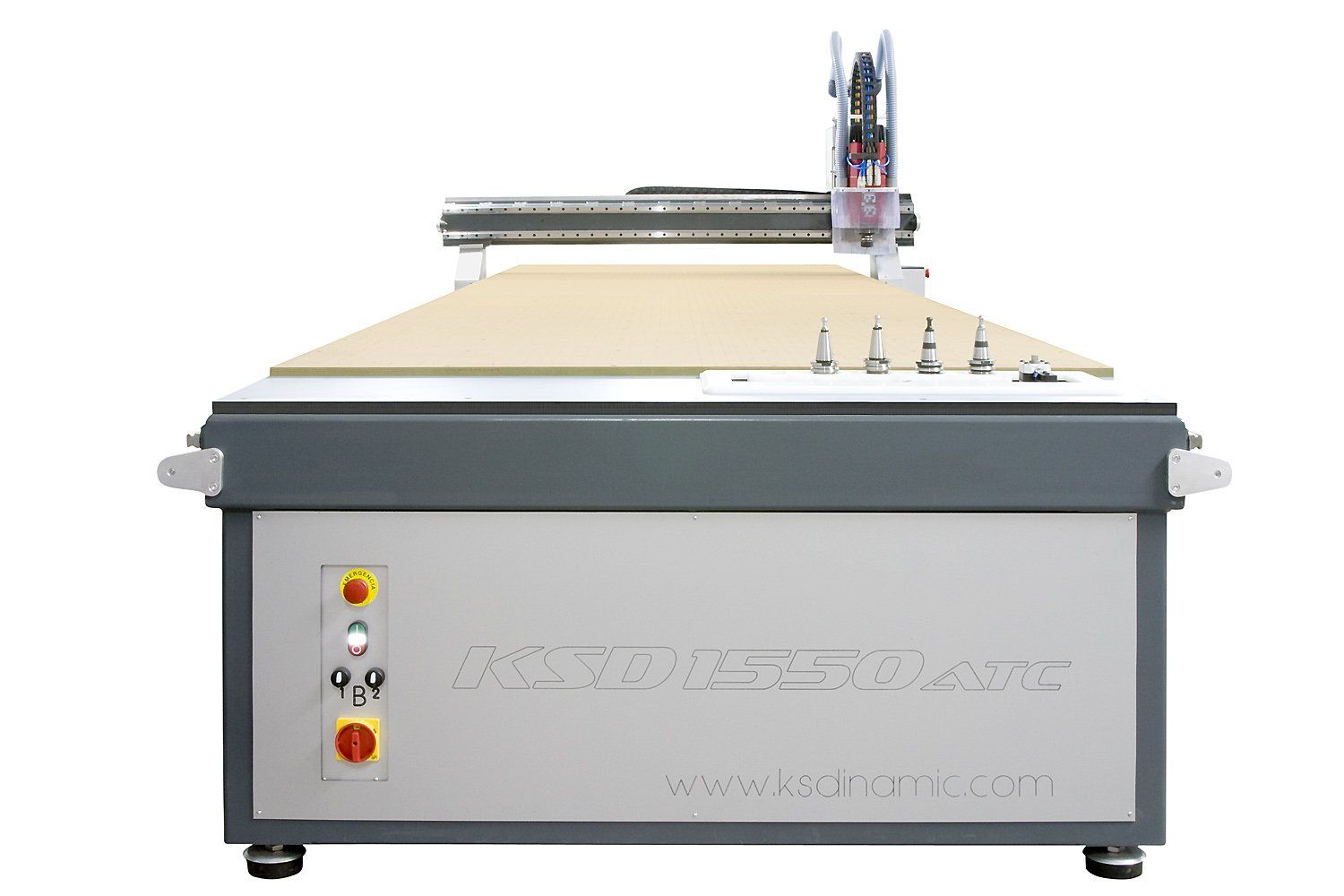

Machine KSD 1550 ATC is a milling machine of numerical control CNC, professional, of high performance, of three axes with bench (table of work) and mobile bridge with displacement on all the useful surface of work, where milling engine is placed . With tool changer.
Machine KSD 1550 ATC is a milling machine of numerical control CNC, professional, of high performance, of three axes with bench (table of work) and mobile bridge with displacement on all the useful surface of work, where milling engine is placed . With tool changer.
Is composed of:
• Monocoque chassis in CNC machined steel.
• Useful size: 1500x5000x200 mm.
• Bench formed by grooved aluminum plate on the entire working surface of 30 mm with grooves to house the clamping elements of the materials to be machined.
• X: 30 mm square guides. with 32 HGR30R linear bearings.
• Y: 25 mm square guides. with 32 HGR25R linear bearings.
• Z: Square guides of 25 mm with 2 linear bearings HGR25R.
• X, Y: Rolled ball screw with 40 mm ball recirculation nut. and 30 mm BK and BF supports.
• Z: Rolled ball screw with 20 mm ball recirculation nut and 15 mm BK and BF supports.
• X axis: Double direct drive engine to the spindle, with ball recirculation nut.
• X1, X2: Panasonic A5-1,5 Kw-Al engines.
• Y axis: Direct drive engine to the spindle, with ball recirculation nut.
• Y1: Panasonic A5-1,5 Kw-Al engine.
• Z axis: Direct drive motor to the spindle, with ball recirculation nut.
• Z1: Panasonic A5-1,5 Kw-Al-FM engine

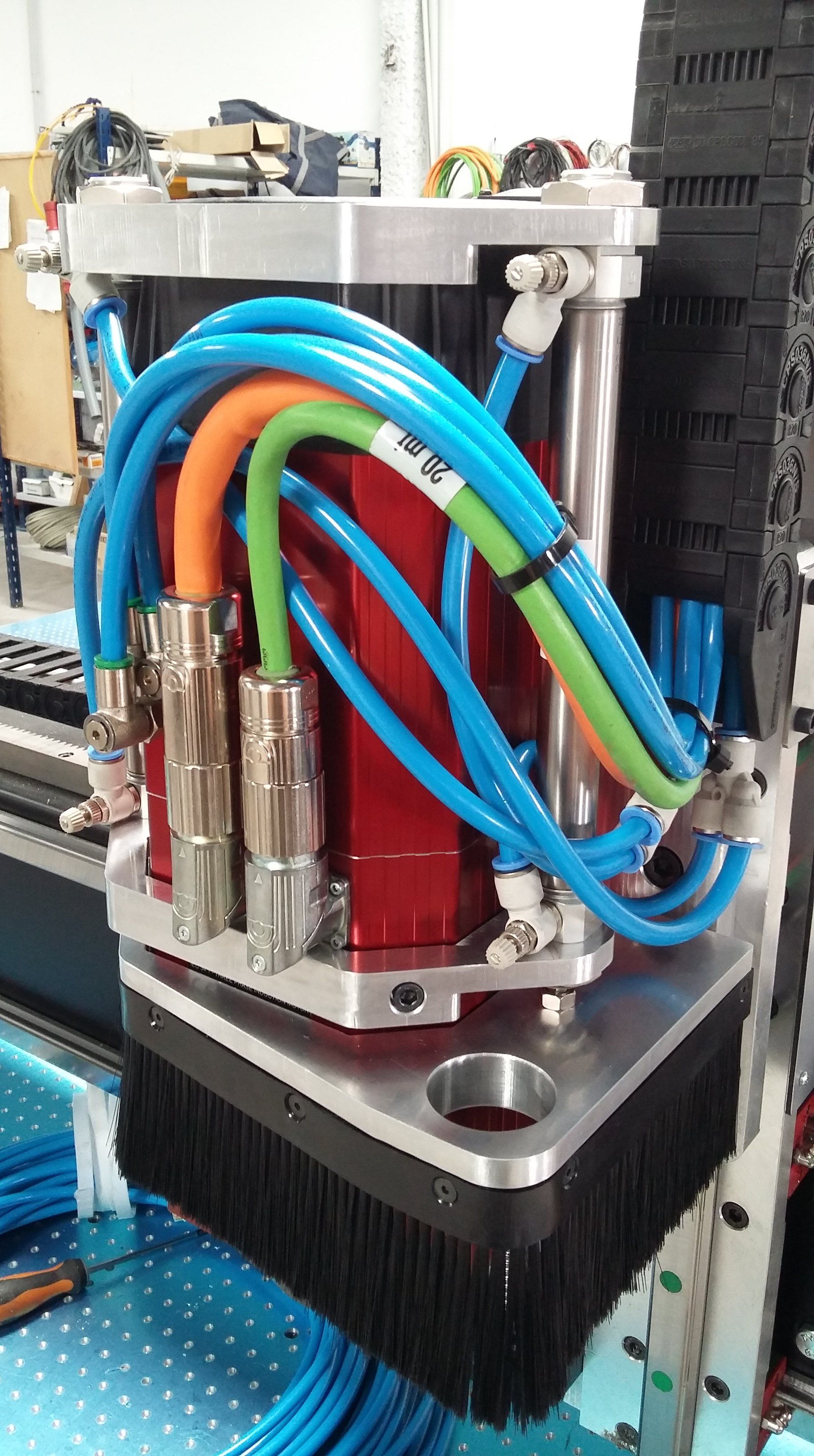

• Changer engine TeknoMotor ATC71-B-HSK-F63-LN, 6.6 Kw, with Mitsubishi 7.5 kW inverter. and variable speeds from 0 to 24,000 rpm. Tool holder by ER20 Clamp that allows a tool diameter of 1 to 12 mm.
• 4 AC Digital Drivers. MDDHT3420.
• 4 inductive positioning sensors.
• Encoder resolution engine 10,000 psi / rev.
• Electronic resolution of 0.025 mm machining.
• 2 emergency stop points.
• Automatic calibration of the height of the tool.
